![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
80 | 30 | 105x80 | 80x60 | 11X9 | 36 | 129 | 100 | 50 | 07P1TB80B30BBPRX4012 |
100 | 30 | 105x80 | 80x60 | 11X9 | 40 | 129 | 100 | 50 | 07P1TB80B30BBPRX4012 |
100 | 30 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 70 | 07P1TB/S100B30BBPRX4012 |
125 | 37.5 | 105x80 | 80x60 | 11X9 | 40 | 134 | 155 | 100 | 07P1TB125B37.5BBPRX5015 |
160 | 40 | 135x110 | 105x80 | 13.5x11 | 60 | 203 | 190 | 140 | 07P1TB160B40BBPRX6020 |
200 | 60 | 135x110 | 105x80 | 13.5x11 | 54 | 156 | 235 | 295 | 07P1TB200B60BBPRX7520 |

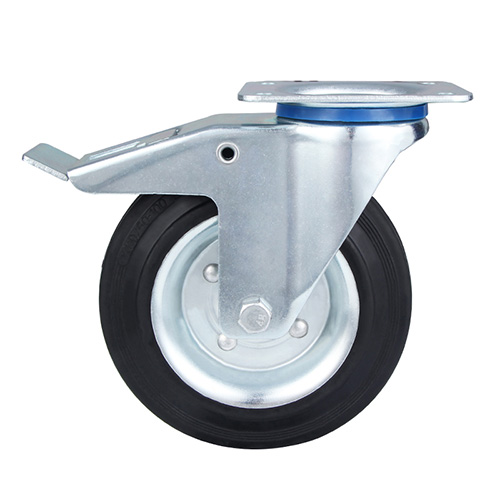

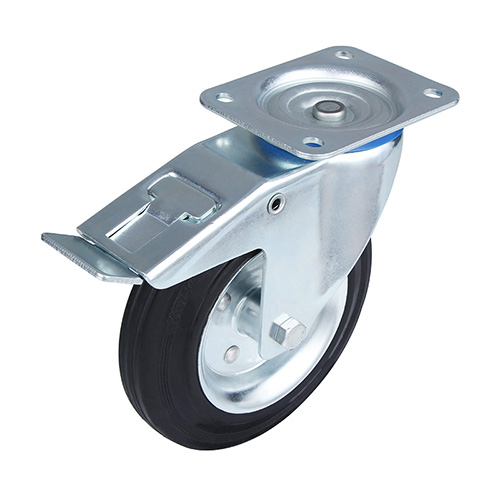

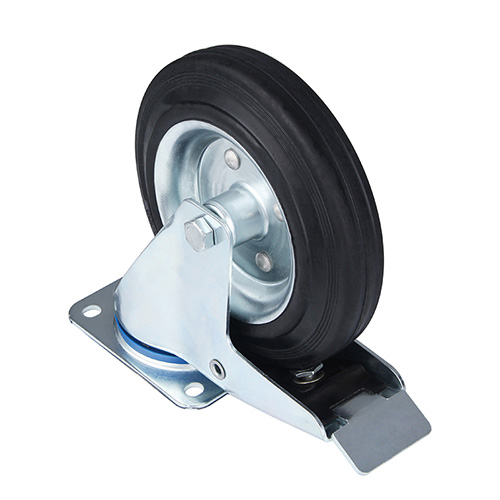

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, black shore a 85+/-3 solid rubber tread, black polypropylene wheel centre, roller bearing
