Housing
fixed_castors_with_tail_brake
Wheel diameter
160mm
Load capacity
140kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85+/-3

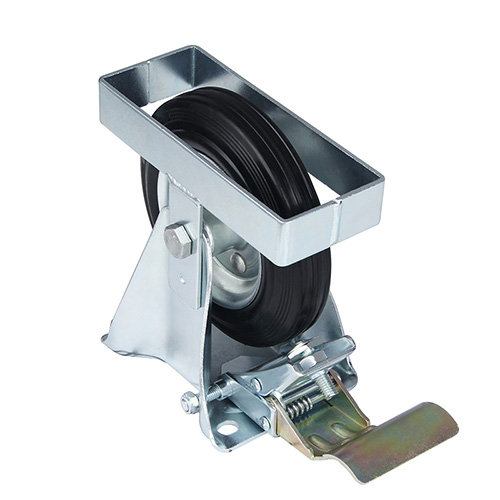

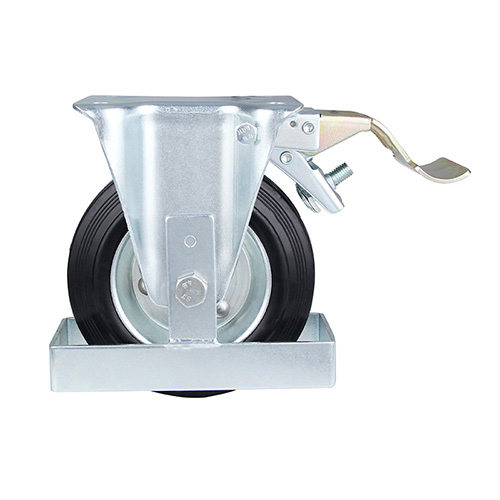

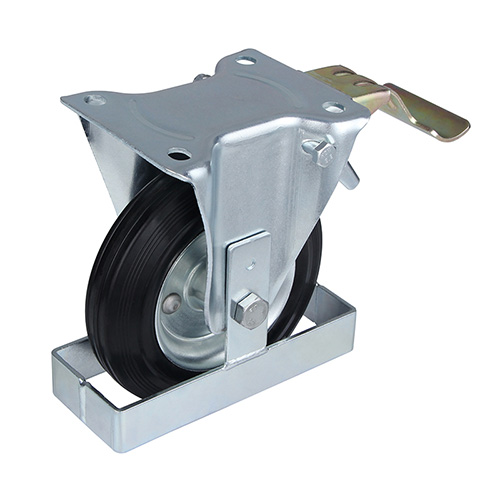

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, black shore a 85+/-3 solid rubber thread, black polypropylene wheel centre， roller bearing
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 160 | 40 | 135x114 | 105x80 | 13.5x11 | 195 | 140 | 07P1F/FB160C40JBMRX6020 |
Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, black shore a 85+/-3 solid rubber thread, black polypropylene wheel centre， roller bearing
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
