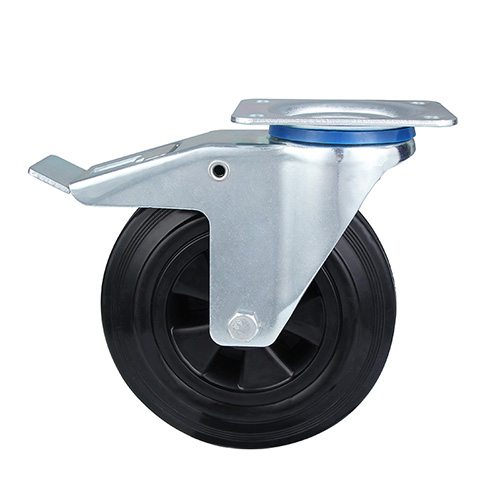

Black Solid Rubber Swivel Castor with Total Lock Black Solid Rubber Swivel Castor with Total Lock
Black Solid Rubber Swivel Castor with Total Lock Black Solid Rubber Swivel Castor with Total Lock
Black Solid Rubber Swivel Castor with Total Lock Black Solid Rubber Swivel Castor with Total Lock

Black Solid Rubber Swivel Castor with Total Lock

Housing

total_brake_castors

Wheel diameter

80, 100, 125, 160, 200mm

Load capacity

50, 70, 70, 100, 140, 295kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85+/-3

Description

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, black shore a 85+/-3 solid rubber thread, black polypropylene wheel centre, roller bearing

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Swivel radius

Overall height

Load capacity
number
80 30
105x80 80x60 11x9 36 129 100 50 07P1TB80B34BPPRX4012
100 30 105x80 80x60 11x9 40 132 125 70 07P1TB100B36BPPRX4012
100 30 105x80 80x60 11x9 40 132 128 70 07P1TB/S100B36BPPRX4012
125 37.5 105x80 80x60 11x9 40 134 155 100 07P1TB125B40BPPRX5015
160 40 135x110 105x80 13.5x11 60 203 190 100 07P1TB160B40BPPRX6020
200 60 135x110 105x80 13.5x11 60 203 235 295 07P1TB200B46BPPRX6020

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, black shore a 85+/-3 solid rubber thread, black polypropylene wheel centre, roller bearing

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
