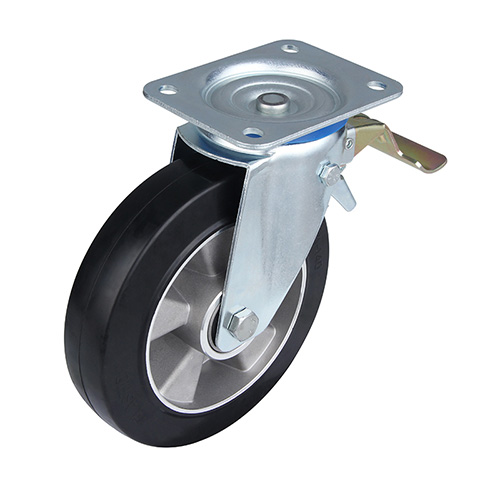

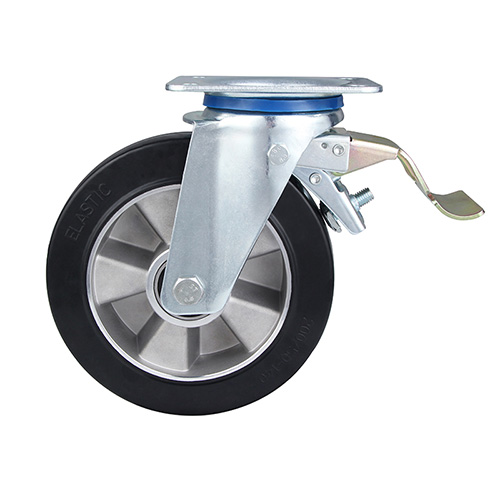

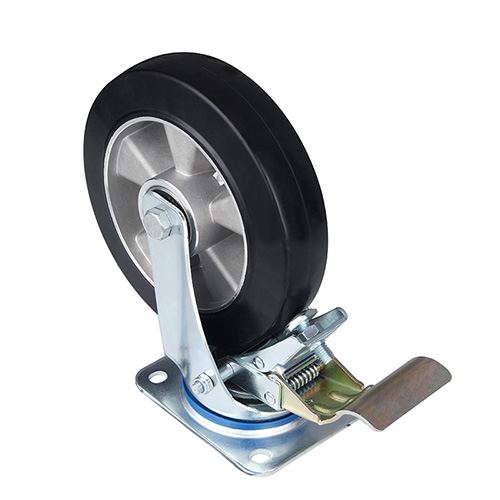

Black Elastic Rubber Swivel Castor with Two Ball Bearings Black Elastic Rubber Swivel Castor with Two Ball Bearings
Black Elastic Rubber Swivel Castor with Two Ball Bearings Black Elastic Rubber Swivel Castor with Two Ball Bearings
Black Elastic Rubber Swivel Castor with Two Ball Bearings Black Elastic Rubber Swivel Castor with Two Ball Bearings

Black Elastic Rubber Swivel Castor with Two Ball Bearings

Housing

tail_brake_castors

Wheel diameter

160, 200, 230, 250mm

Load capacity

300, 350, 350, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Swivel radius

Overall height

Load capacity
number
160 50 135x110 105x80 13.5x11 52 154 190 300 07P1FB160C50JEADX6020
200 50 135x110 105x80 13.5x11 54 154 235 350 07P1FB200C50JEADX6020
230 50 135x110 105x80 13.5x11 54 154 260 350 07P1FB230C50JEADX6020
250 50 135x110 105x80 13.5x11 54 154 290 350 07P1FB250C50JEADX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
