![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
80 | 38 | 105x80 | 80x60 | 11X9 | 36 | 145 | 100 | 150 | 07P1DB80C38JEADX4015 |
100 | 40 | 105x80 | 80x60 | 11X9 | 36 | 145 | 125 | 180 | 07P1DB100C40JEADX4015 |
100 | 40 | 105x80 | 80x60 | 11X9 | 36 | 145 | 125 | 180 | 07P1DB/S100C40JEADX4015 |

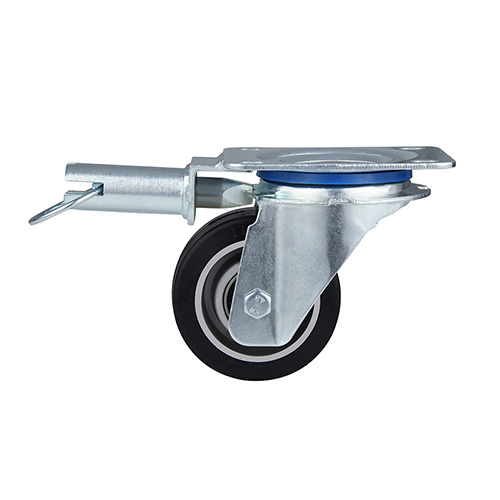

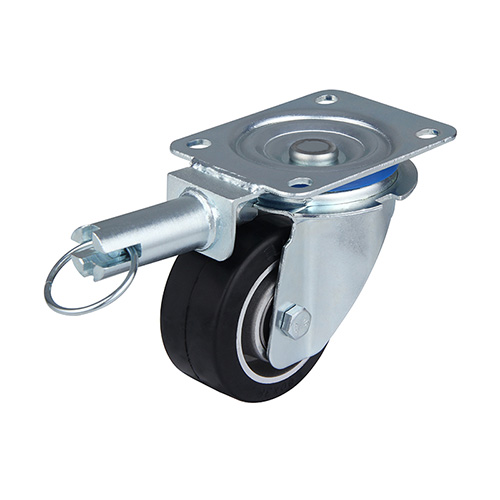

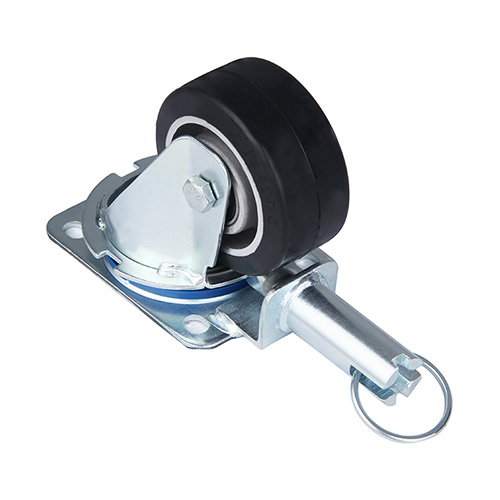

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings
