Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 300 | 07P1FB160C50JEADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 235 | 350 | 07P1FB200C50JEADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 61 | 157 | 260 | 350 | 07P1FB230C50JEADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 70 | 157 | 290 | 350 | 07P1FB250C50JEADX6020 |

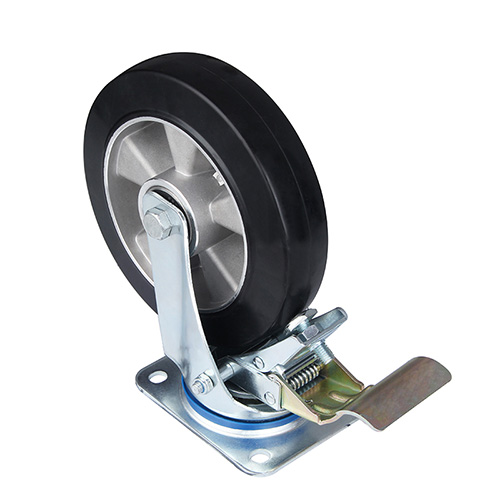

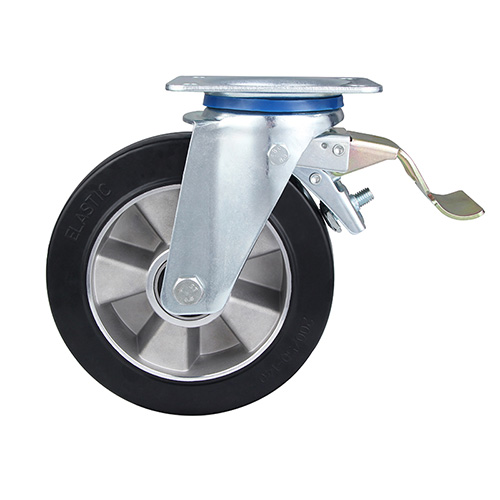

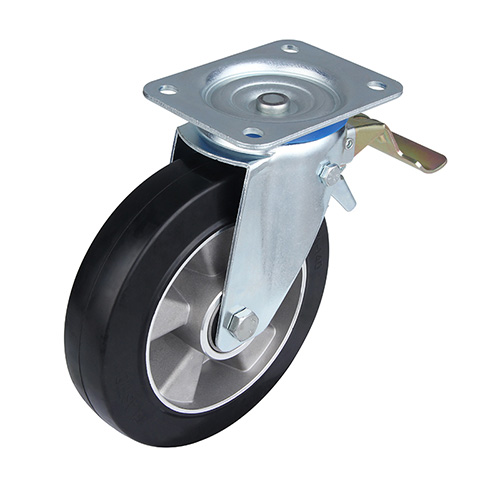

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings
