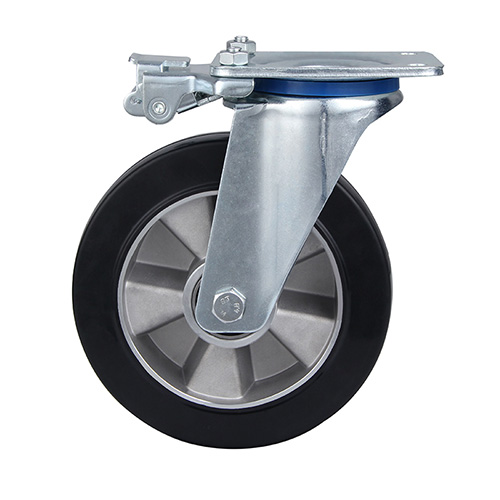

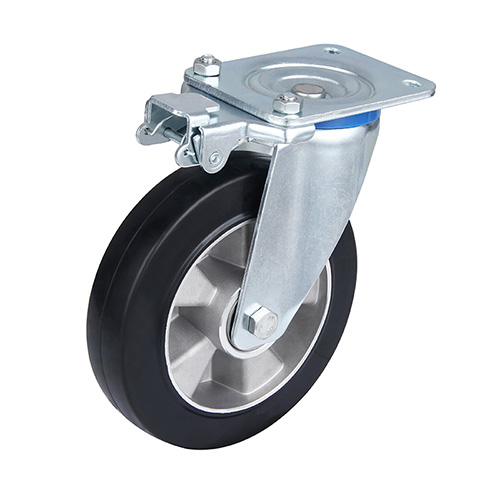

Black Elastic Rubber Swivel Castor with Directional Lock with Two Ball Bearings Black Elastic Rubber Swivel Castor with Directional Lock with Two Ball Bearings
Black Elastic Rubber Swivel Castor with Directional Lock with Two Ball Bearings Black Elastic Rubber Swivel Castor with Directional Lock with Two Ball Bearings

Black Elastic Rubber Swivel Castor with Directional Lock with Two Ball Bearings

Housing

directional_lock_castors

Wheel diameter

160, 200mm

Load capacity

400, 450kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Overall height

Load capacity
number
160 50 135x110 105x80 13.5x11 52 190 350 09H1DB160A50CEPDX6020
160 50 135x110 105x80 13.5x11 52 200 350 09H1DB/S160A50CEPDX6020
200 50 135x110 105x80 13.5x11 54 235 400 09H1DB200A50CEPDX6020
200 50 135x110 105x80 13.5x11 54 245 400 09H1DB/S200A50CEPDX6020


Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber tread, two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
