Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
80 | 38 | 105x80 | 80x60 | 11X9 | 40 | 120 | 108 | 180 | 09P1TB80C38JEADX4015 |
100 | 40 | 105x80 | 80x60 | 11X9 | 40 | 122 | 132 | 200 | 09P1TB100C40JEADX4015 |
125 | 40 | 105x80 | 80x60 | 11X9 | 40 | 122 | 155 | 250 | 09P1TB125C40JEADX5015 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 190 | 400 | 09P1TB160C50JEADX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 200 | 400 | 09P1TB/S160C50JEADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 235 | 450 | 09P1TB200C50JEADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 245 | 450 | 09P1TB/S200C50JEADX6020 |

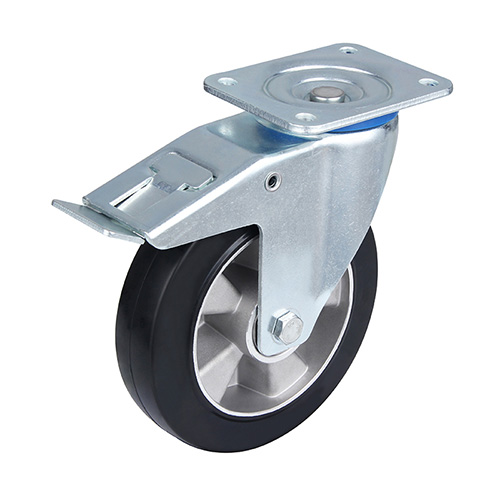

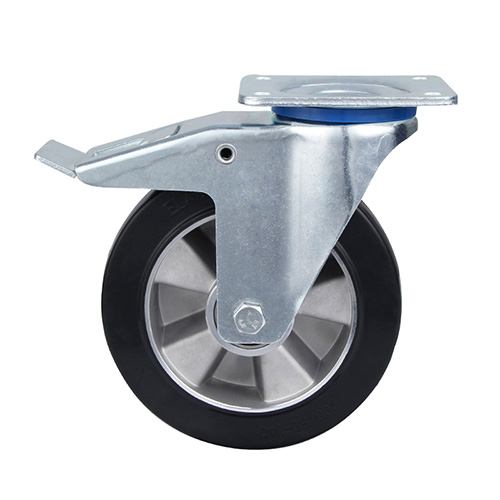

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings
