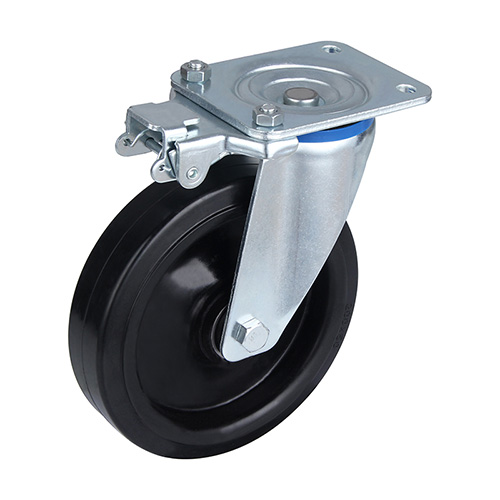

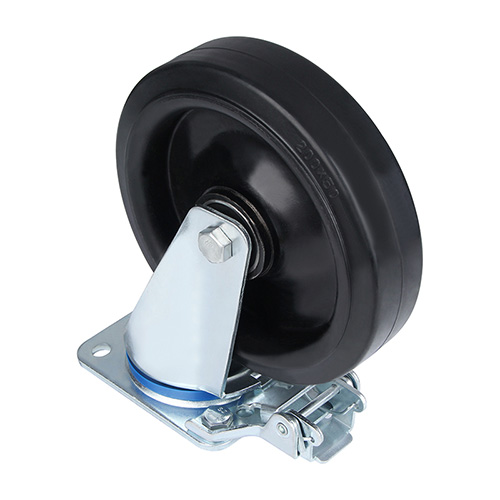

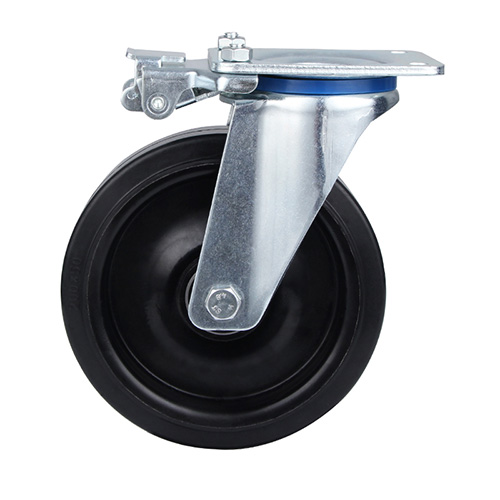

Black Elastic Rubber Swivel Castor with Directional Lock with Black Samll Plastic Thread guards

Black Elastic Rubber Swivel Castor with Directional Lock with Black Samll Plastic Thread guards

Industrial Castors , Black

Housing

tail_brake_castors

Wheel diameter

160, 450mm

Load capacity

400, 400kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black welded pressed steel wheel centre, 68+5 shore a 68+5 black elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
160	50	135x110	105x80	13.5x11	52	190	400	09P1FB160C50CESDX5425
160	50	135x110	105x80	13.5x11	52	200	400	09P1FB/S160C50CESDX5425
200	50	135x110	105x80	13.5x11	54	235	450	09P1FB200C50CESDX5420
200	50	135x110	105x80	13.5x11	54	245	450	09P1FB/S200C50CESDX5420

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black welded pressed steel wheel centre, 68+5 shore a 68+5 black elastic rubber tread, two ball bearings
