 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 160 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 190 | 400 | 09P1TB160C50CESDX5425 |
| 160 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 200 | 400 | 09P1TB/S160C50CESDX5425 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 235 | 450 | 09P1TB200C50CESDX5420 |
| 200 | 50 | 135x110 | 105x80 | 13.5x11 | 60 | 199 | 245 | 450 | 09P1TB/S200C50CESDX5420 |

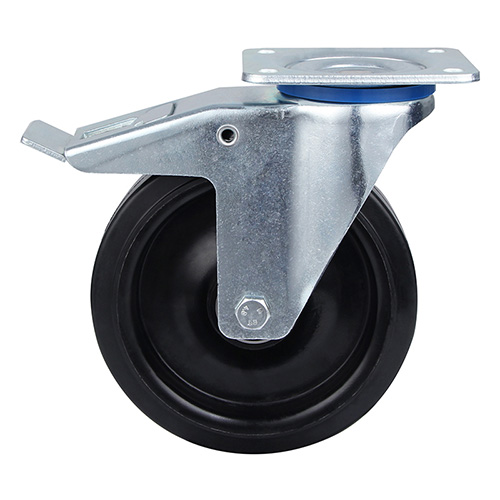

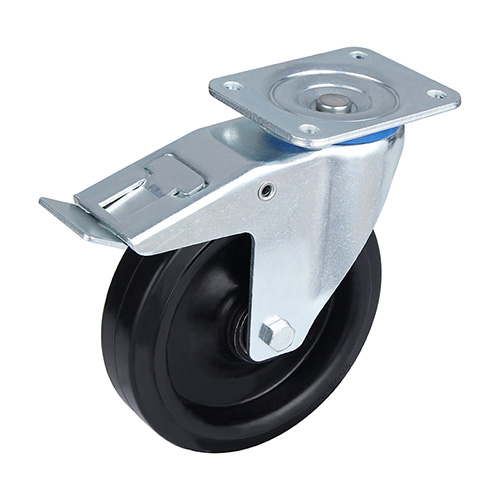

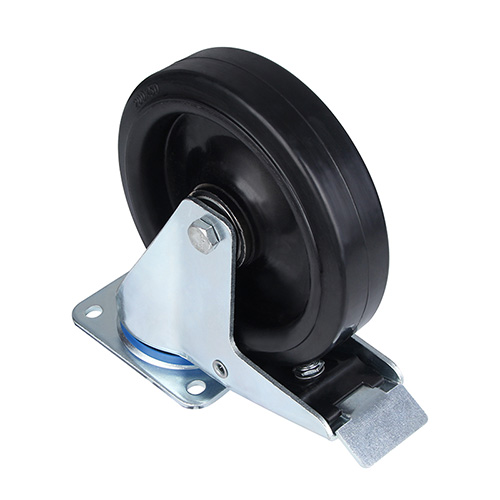

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black welded pressed steel wheel centre, 68+5 shore a 68+5 black elastic rubber tread, two ball bearings
