Housing
bolt_hole_castors
Wheel diameter
100, 125mm
Load capacity
180, 230kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
A 68+5 Shore

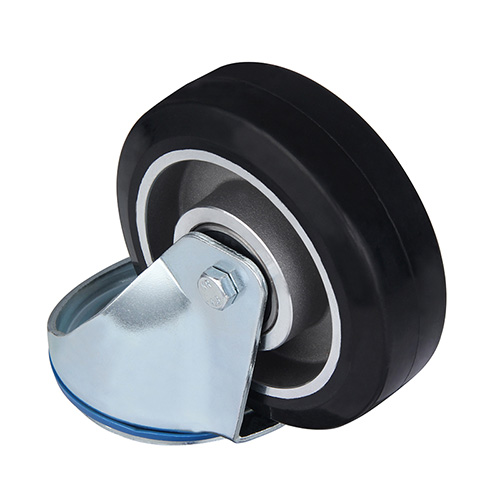

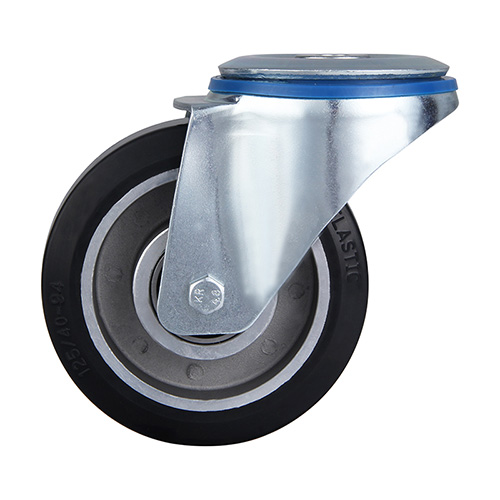

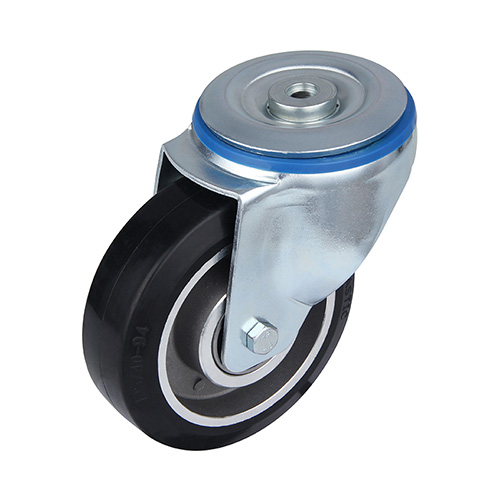

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 100 | 40 | 45 | ф16 | 128 | 200 | 06H1S100C40JEADX4015 |
| 125 | 40 | 48 | ф16 | 155 | 250 | 06H1S125C40JEADX5015 |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
