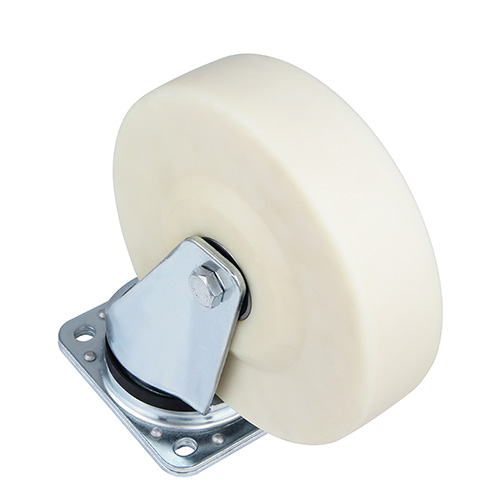

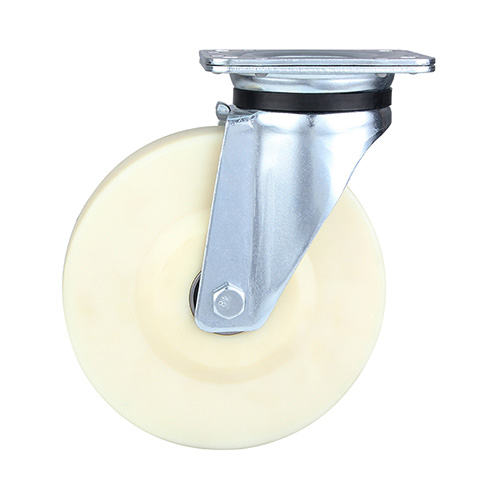

White MC Polyamide Heavy Duty Industrial Castors Swivel Castors

Housing

swivel_castors

Wheel diameter

80, 100, 125, 150, 160, 200, 250mm

Load capacity

350, 350, 800, 800, 800, 800, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, white casting-polyamide, two ball bearings

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	38	105x80	80x60	11X9	40	120	350	03P1S80B38BPCDX5015
100	38	105x80	80x60	11X9	40	130	350	03P1S100B38BPCDX5015
125	50	135x110	105x80	13.5x11	50	178	800	03P1S125B50BPCDX6020
150	50	135x110	105x80	13.5x11	53	210	800	03P1S150B50BPCDX6020
160	50	135x110	105x80	13.5x11	53	215	800	03P1S160B50BPCDX6020
200	50	135x110	105x80	13.5x11	55	245	800	03P1S200B50BPCDX6020
250	50	135x110	105x80	13.5x11	67	297	800	03P1S250B50BPCDX7520
