![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
100 | 38 | 105x80 | 80x60 | 11X9 | 40 | 120 | 130 | 350 | 03P1TB100B38BPHDX |
125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 162 | 178 | 700 | 03P1TB125B50BPHDX6020 |
150 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 162 | 210 | 800 | 03P1TB150B50BPHDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 162 | 215 | 800 | 03P1TB160B50BPHDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 162 | 245 | 800 | 03P1TB200B50BPHDX6020 |

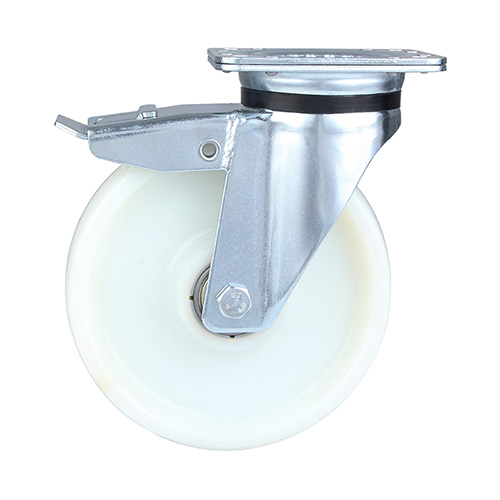

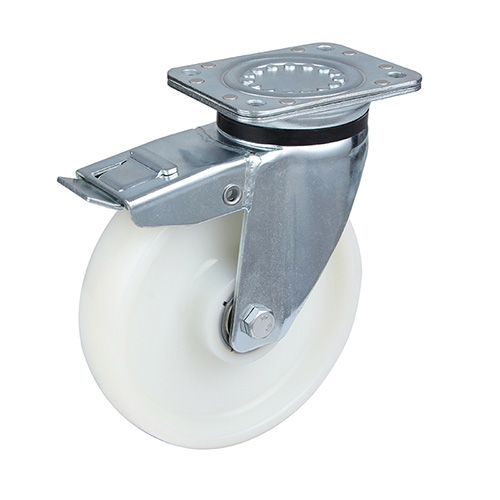

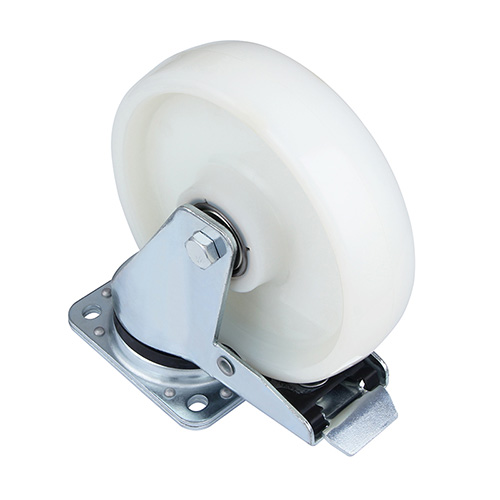

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, white injection polyamide, two ball bearings
