![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|
160 | 46 | 135x110 | 105x80 | 13.5x11 | 53 | 215 | 300 | 03P1S160D46DETDA6212 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 55 | 245 | 400 | 03P1S200D46DETDA6212 |

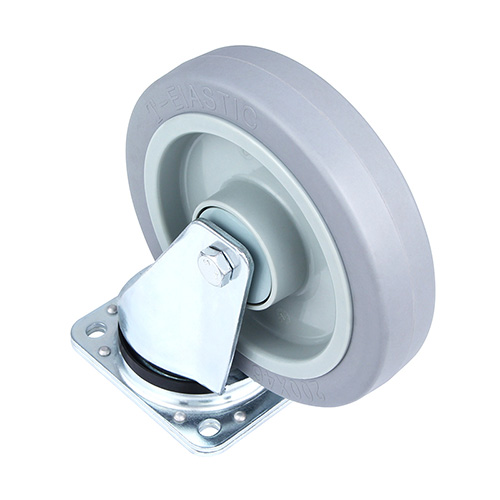

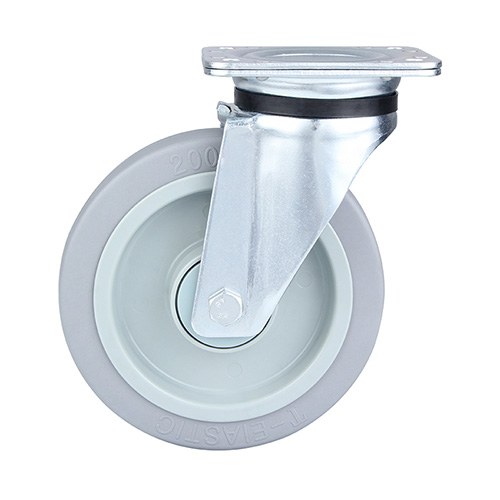

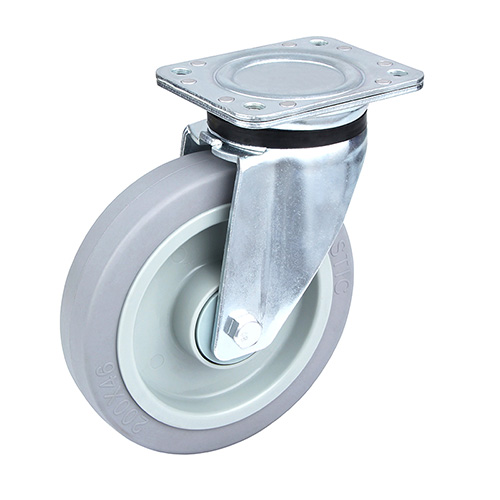

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, grey polyamide wheel centre, shore a 68+5 grey elastic rubber thread, two ball bearings, grey samll plastic thread guards
