Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
150 | 40 | 135x110 | 105x80 | 13.5x11 | 54 | 210 | 300 | 03P1DB150H40DUPDA6212 |
160 | 40 | 135x110 | 105x80 | 13.5x11 | 54 | 215 | 350 | 03P1DB160H40DUPDA6212 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 245 | 500 | 03P1DB200H50DUPDA6212 |

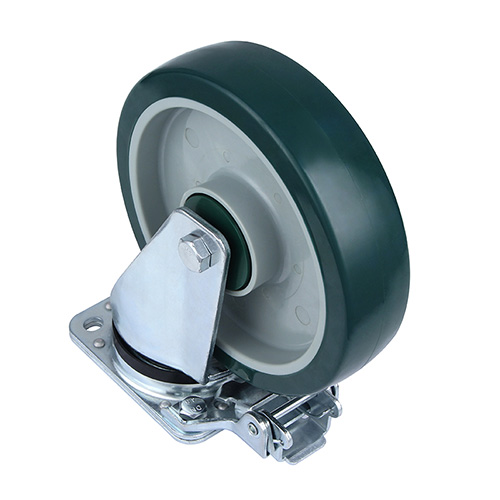

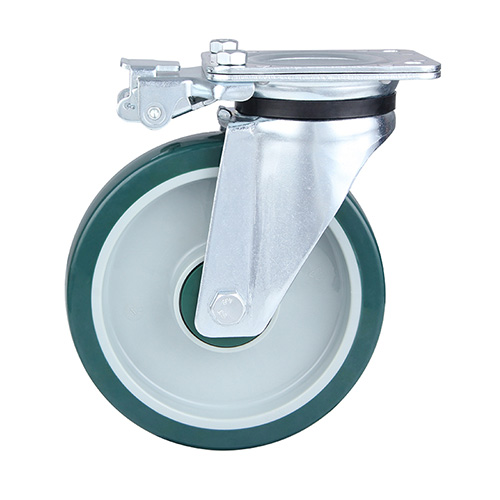

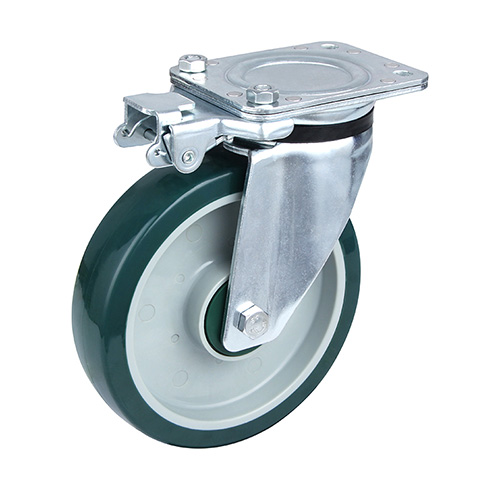

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green samll plastic thread guards
