Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 34 | 105x80 | 80x60 | 11X9 | 120 | 150 | 03P1F80H34DUPDA4208 |
100 | 36 | 105x80 | 80x60 | 11X9 | 130 | 200 | 03P1F100H36DUPDA4208 |
150 | 40 | 135x110 | 105x80 | 13.5x11 | 210 | 300 | 03P1F150H40DUPDA6212 |
160 | 40 | 135x110 | 105x80 | 13.5x11 | 215 | 350 | 03P1F160H40DUPDA6212 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 245 | 500 | 03P1F200H50DUPDA6212 |

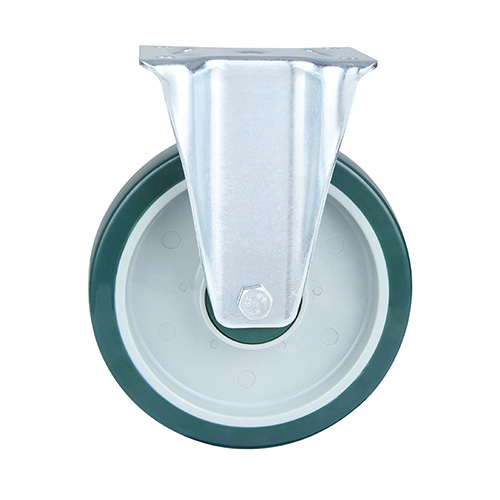

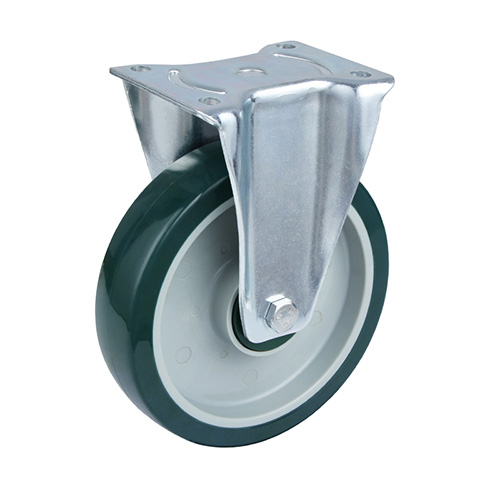

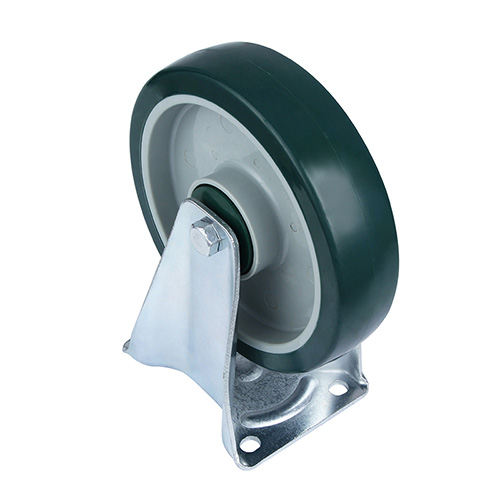

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green samll plastic thread guards
