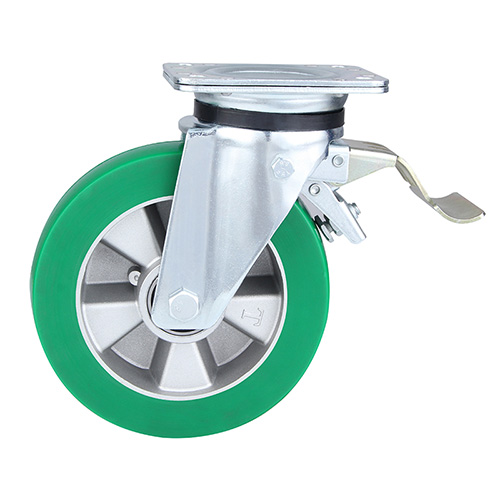

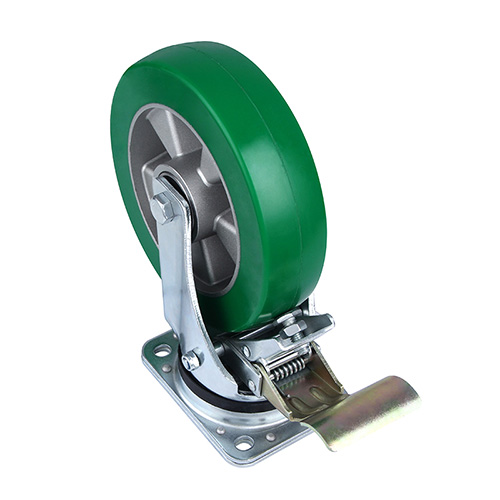

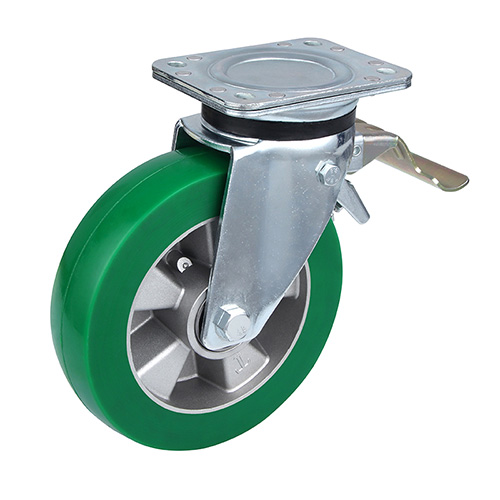

Green Elastic Polyurethane Heavy Duty Swivel Castor with Front Lock

Green Elastic Polyurethane Heavy Duty Swivel Castor with Front Lock

Heavy Duty Industrial Castors , Green

Housing

tail_brake_castors

Wheel diameter

125, 150, 160, 200, 250mm

Load capacity

400, 550, 700, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore A 85 green elastic polyurethane tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
125	50	135x110	105x80	13.5x11	50	147	178	400	03P1FB125H50JUHDX6020
150	50	135x110	105x80	13.5x11	53	147	210	550	03P1FB160H50JUHDX6020
160	50	135x110	105x80	13.5x11	55	156	215	700	03P1FB200H50JUHDX6020
200	50	135x110	105x80	13.5x11	67	156	245	800	03P1FB250H50JUHDX6020

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore A 85 green elastic polyurethane tread, two ball bearings
