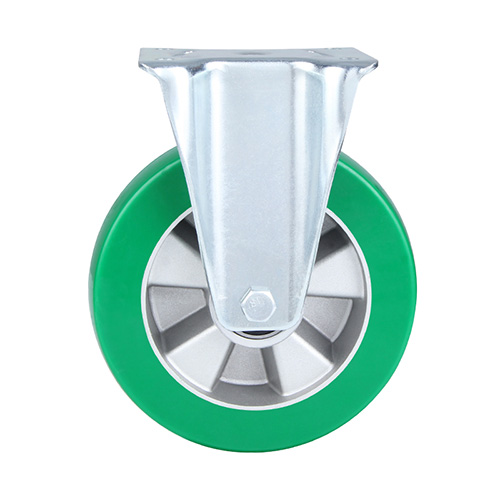

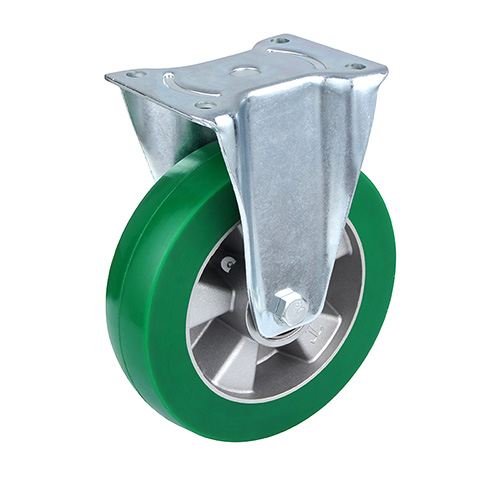

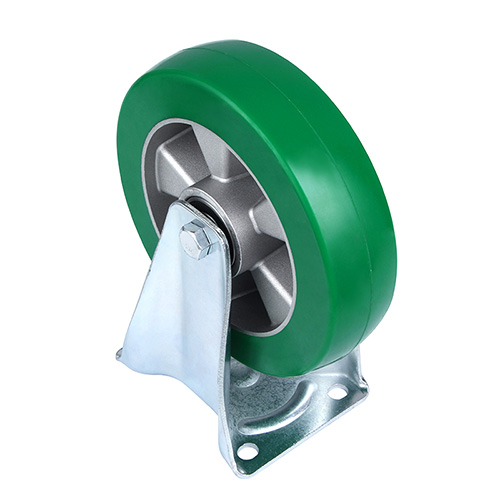

Green Elastic Polyurethane Heavy Duty Fixed Castor

Green Elastic Polyurethane Heavy Duty Fixed Castor

Heavy Duty Industrial Castors , Green

Housing

fixed_castors

Wheel diameter

80, 100, 125, 160, 200, 250mm

Load capacity

180, 250, 400, 550, 700, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore A 85 green elastic polyurethane tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Overall height	Load capacity	number
80	38	105x80	80x60	11X9	120	180	03P1F80H38JUHDX4015
100	40	105x80	80x60	11X9	130	250	03P1F100H40JUHDX4015
125	50	135x110	105x80	13.5x11	178	400	03P1F125H50JUHDX6020
160	50	135x110	105x80	13.5x11	215	550	03P1F160H50JUHDX6020
200	50	135x110	105x80	13.5x11	245	700	03P1F200H50JUHDX6020
250	50	135x110	105x80	13.5x11	297	800	03P1F250H50JUHDX6020

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore A 85 green elastic polyurethane tread, two ball bearings
