![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 147 | 178 | 800 | 03P1FB125B50BPCDX6020 |
150 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 147 | 210 | 800 | 03P1FB150B50BPCDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 147 | 215 | 800 | 03P1FB160B50BPCDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 156 | 245 | 800 | 03P1FB200B50BPCDX6020 |
250 | 50 | 135x110 | 105x80 | 13.5x11 | 67 | 156 | 297 | 800 | 03P1FB250B50BPCDX7520 |

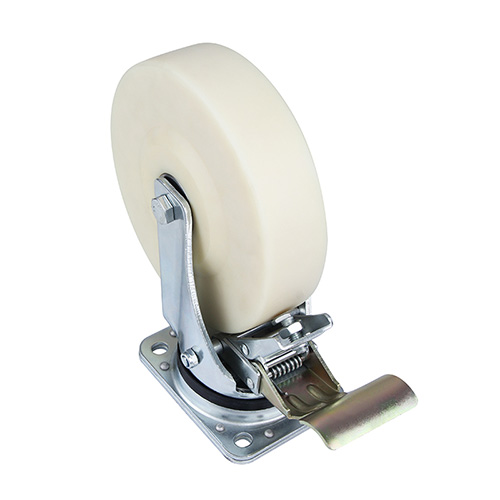

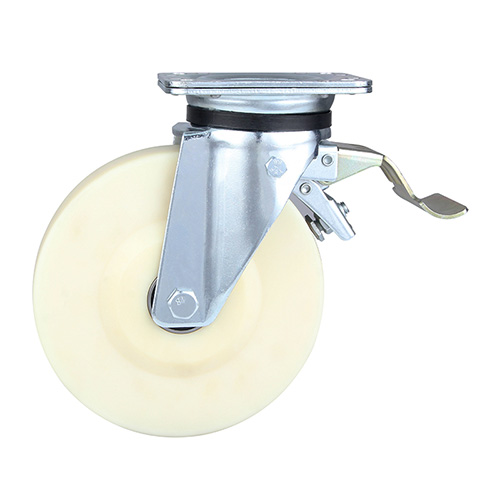

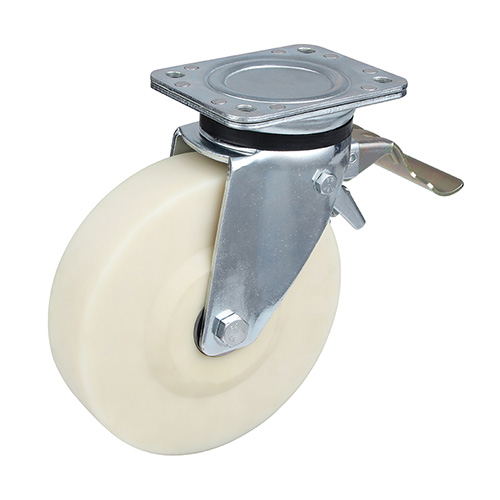

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, white casting-polyamide, two ball bearings
