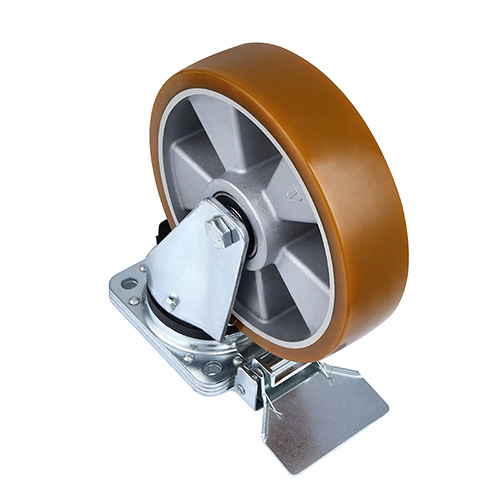

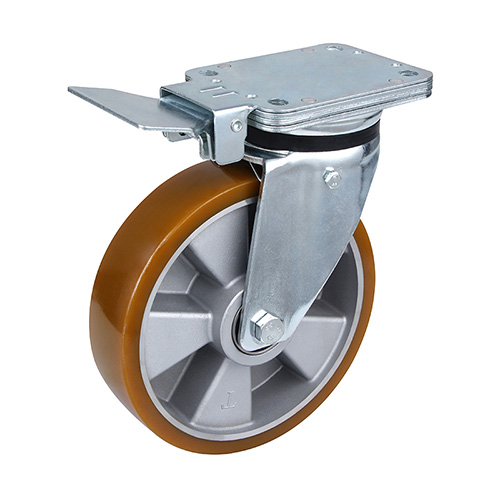

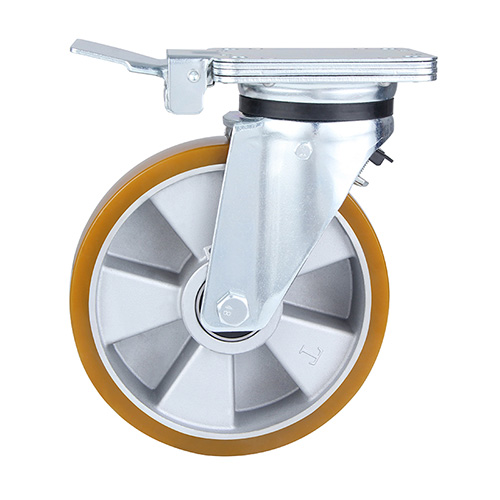

Brown Polyurethane Heavy Duty Swivel Castor with Central Lock Brown Polyurethane Heavy Duty Swivel Castor with Central Lock
Brown Polyurethane Heavy Duty Swivel Castor with Central Lock Brown Polyurethane Heavy Duty Swivel Castor with Central Lock
Brown Polyurethane Heavy Duty Swivel Castor with Central Lock Brown Polyurethane Heavy Duty Swivel Castor with Central Lock

Brown Polyurethane Heavy Duty Swivel Castor with Central Lock

Housing

central_brake_castors

Wheel diameter

125, 150, 160, 200mm

Load capacity

450, 550, 600, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore a 92 brwon polyurethane thread, two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Swivel radius

Overall height

Load capacity
number
125 50 135x110 105x80 13.5x11 50 155.65 177.5 450 03P1CB125K50JUADX6020
150 50 135x110 105x80 13.5x11 53 155.65 210 550 03P1CB150K50JUADX6020
160 50 135x110 105x80 13.5x11 53 155.65 215 600 03P1CB160K50JUADX6020
200 50 135x110 105x80 13.5x11 55 155.65 255 800 03P1CB200K50JUADX6020


Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore a 92 brwon polyurethane thread, two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
