Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 178 | 270 | 03P1DB125K50JUADX6020 |
150 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 210 | 350 | 03P1DB150K50JUADX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 215 | 400 | 03P1DB160K50JUADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 245 | 500 | 03P1DB200K50JUADX6020 |

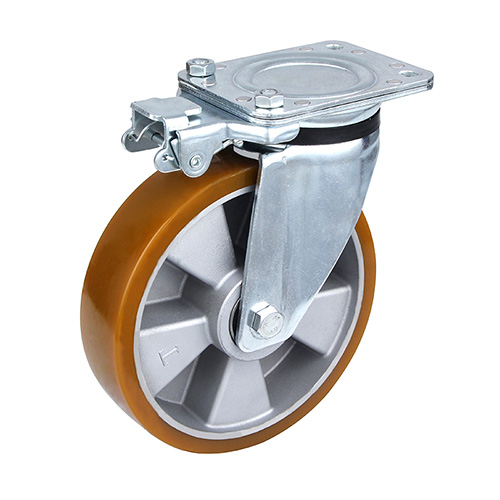

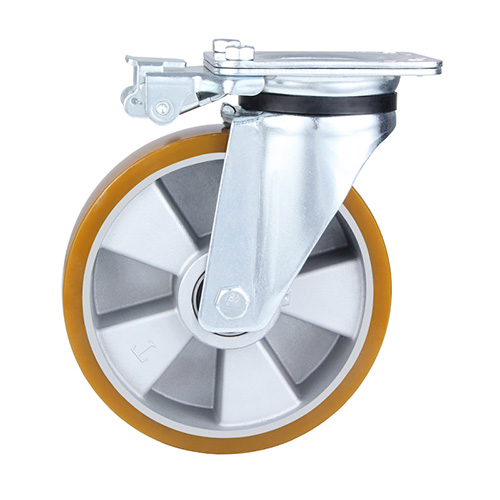

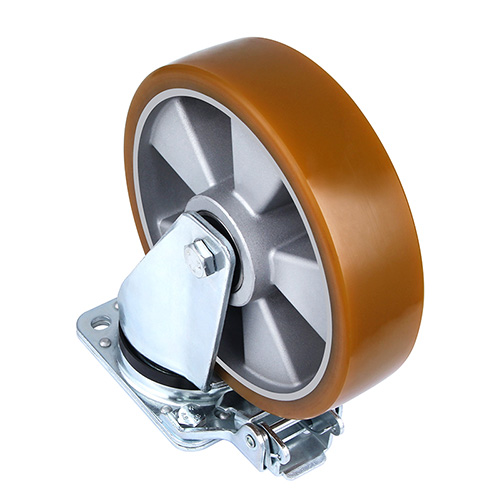

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore a 92 brwon polyurethane thread, two ball bearings
