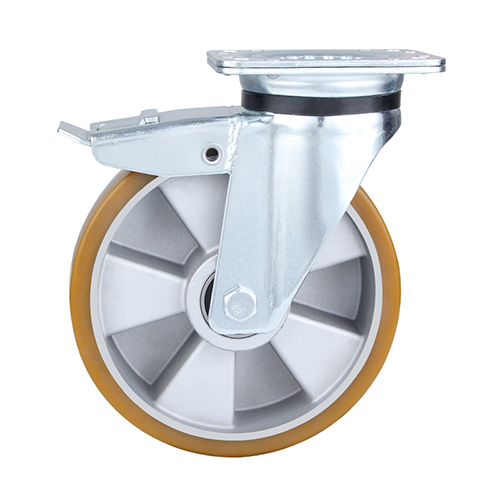

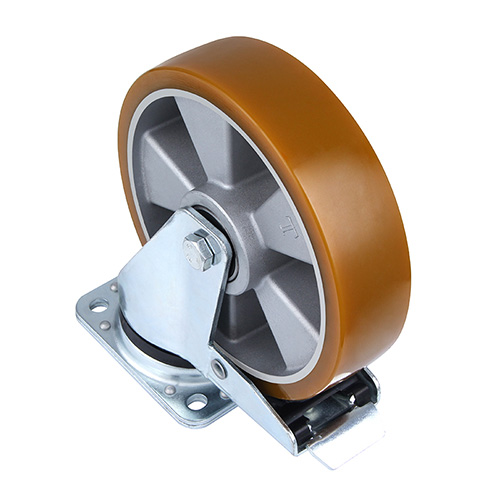

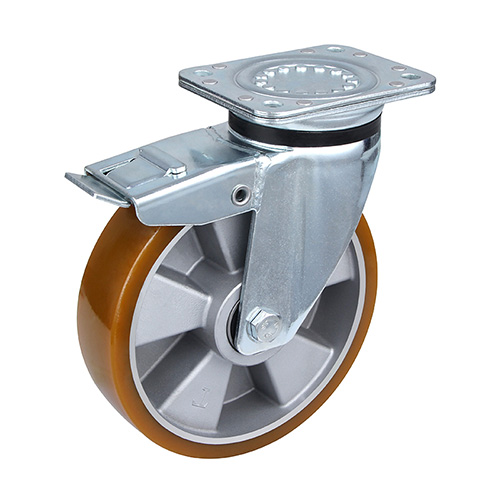

Brown Polyurethane Heavy Duty Castor with Total Lock Brown Polyurethane Heavy Duty Castor with Total Lock
Brown Polyurethane Heavy Duty Castor with Total Lock Brown Polyurethane Heavy Duty Castor with Total Lock
Brown Polyurethane Heavy Duty Castor with Total Lock Brown Polyurethane Heavy Duty Castor with Total Lock

Brown Polyurethane Heavy Duty Castor with Total Lock

Housing

total_brake_castors

Wheel diameter

80, 100, 125, 150, 160, 200, 250mm

Load capacity

180, 200, 450, 550, 600, 800, 800kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore a 92 brwon polyurethane thread, two ball bearings

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Swivel radius

Overall height

Load capacity
number
80 38 105x80 80x60 11X9 40 120 120 180 03P1TB80K38JUADX4015
100 38 105x80 80x60 11X9 40 120 130 200 03P1TB100K38JUADX5015
125 50 135x110 105x80 13.5x11 50 162 178 450 03P1TB125K50JUADX6020
150 50 135x110 105x80 13.5x11 53 199 210 550 03P1TB150K50JUADX6020
160 50 135x110 105x80 13.5x11 53 162 215 600 03P1TB160K50JUADX6020
200 50 135x110 105x80 13.5x11 55 162 245 800 03P1TB200K50JUADX6020


Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, silvery casting-aluminium wheel centre, shore a 92 brwon polyurethane thread, two ball bearings

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Quality & Service since 18 Year

Our quality is creating an easier work-life for the user of the wheel.

Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
