Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 46 | 135x110 | 105x80 | 13.5x11 | 53 | 155.65 | 215 | 300 | 03P1CB160D46DETDA6212 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 55 | 155.65 | 255 | 400 | 03P1CB200D46CETDA6212 |

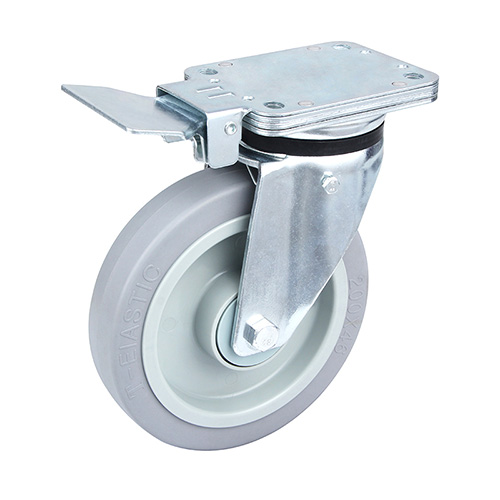

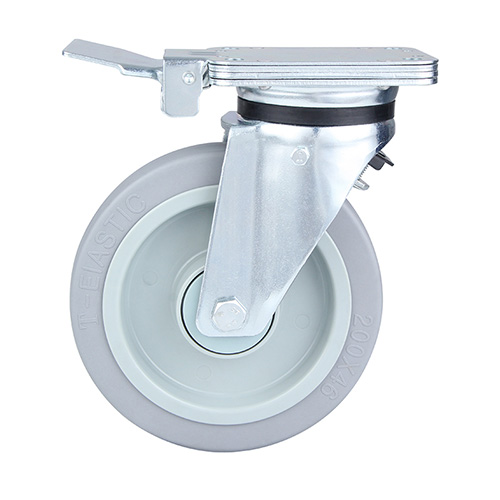

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, grey polyamide wheel centre, shore a 68+5 grey elastic rubber thread, two ball bearings, grey samll plastic thread guards
