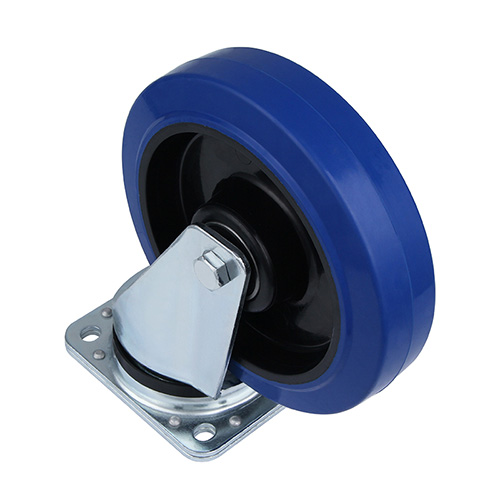

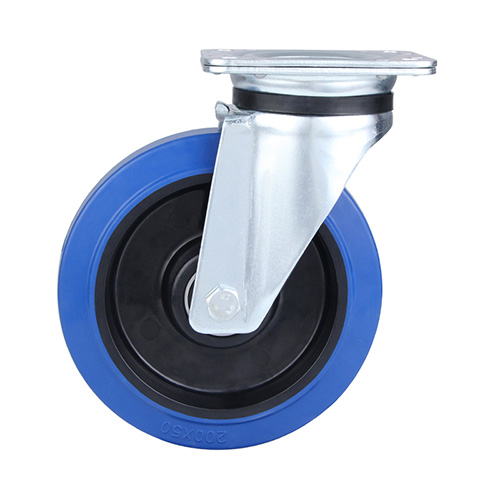

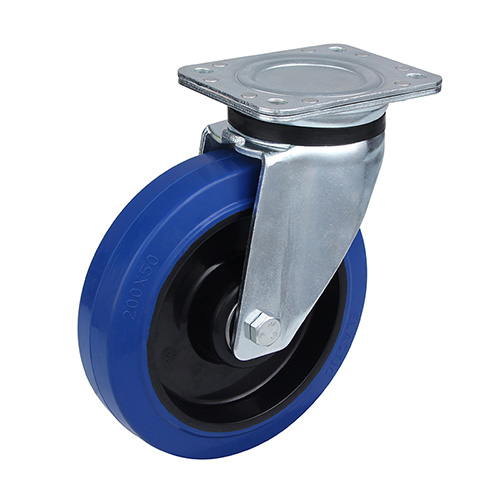

Blue Elastic Rubber Heavy duty Swivel Castor

Blue Elastic Rubber Heavy duty Swivel Castor

Heavy Duty Industrial Castors , Blue

Housing

swivel_castors

Wheel diameter

80, 100, 125, 150, 160, 200, 250mm

Load capacity

150, 200, 250, 350, 400, 500, 650kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	36	105x80	80x60	11X9	40	120	150	03P1S80A36CEPDX4015
100	36	105x80	80x60	11X9	40	130	200	03P1S100A36CEPDX4015
125	50	135x110	105x80	13.5x11	50	178	250	03P1S125A50CEPDX6020
150	50	135x110	105x80	13.5x11	53	210	350	03P1S150A50CEPDX6020
160	50	135x110	105x80	13.5x11	53	215	400	03P1S160A50CEPDX6020
200	50	135x110	105x80	13.5x11	55	245	500	03P1S200A50CEPDX6020
250	50	135x110	105x80	13.5x11	67	297	650	03P1S250A50CEPDX6020

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings
