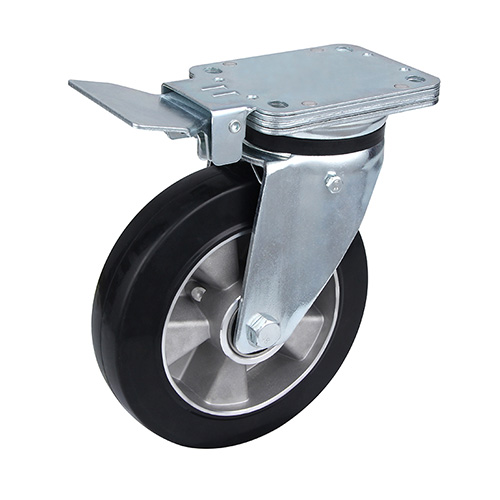

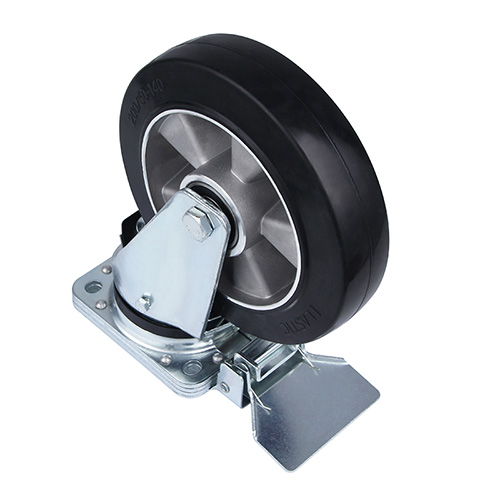

Black Elastic Rubber Heavy Duty Swivel Castor with Central Lock

Black Elastic Rubber Heavy Duty Swivel Castor with Central Lock

Heavy Duty Industrial Castors , Black

Housing

central_brake_castors

Wheel diameter

125, 150, 160, 200mm

Load capacity

270, 350, 400, 500kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber thread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
125	50	135x110	105x80	13.5x11	50	155.65	177.5	270	03P1CB125C50JEADX6020
150	50	135x110	105x80	13.5x11	53	155.65	210	350	03P1CB150C50JEADX6020
160	50	135x110	105x80	13.5x11	53	155.65	215	400	03P1CB160C50JEADX6020
200	50	135x110	105x80	13.5x11	55	155.65	255	500	03P1CB200C50JEADX6020

Pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin silvery casting-aluminium wheel centre, shore a 68+5 black elastic rubber thread, two ball bearings
