Wheel diameter
100, 125, 150, 160, 200mm
Load capacity
350, 350, 400, 450, 600kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 80

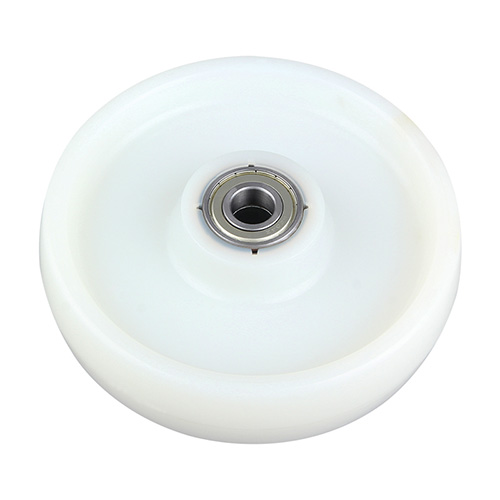

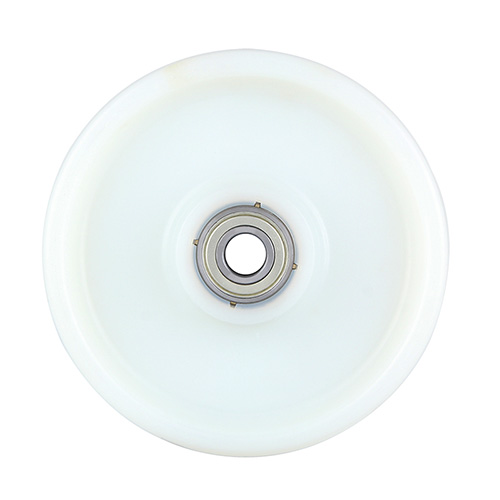

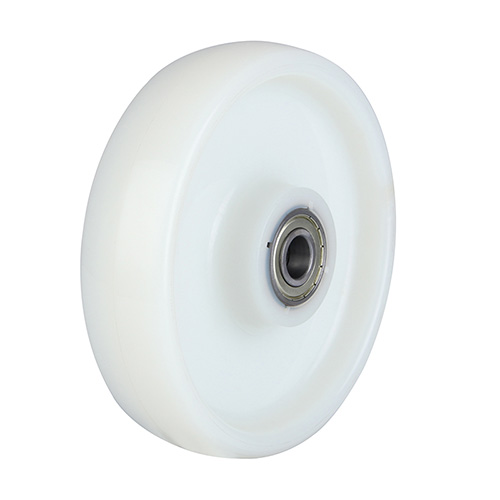

White injection polyamide, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 100 | 38 | 50 | 15 | 350 | 100B38BPHDX5015 |
| 100 | 38 | 50 | 15 | 350 | 125B38BPHDX5015 |
| 125 | 50 | 60 | 20 | 400 | 125B50BPHDX6020 |
| 150 | 50 | 60 | 20 | 450 | 150B50BPHDX6020 |
| 160 | 60 | 60 | 20 | 450 | 160B50BPHDX6020 |
| 200 | 200 | 60 | 20 | 600 | 200B50BPHDX6020 |
Tile Floor
Resin Cement Floor
