Wheel diameter
80, 100, 125, 160, 200mm
Load capacity
50, 70, 100, 140, 205kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 80

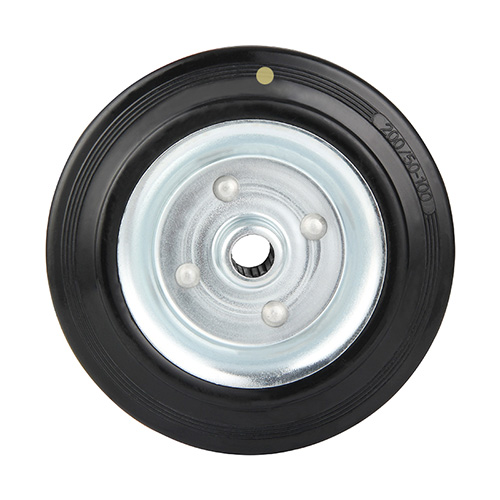

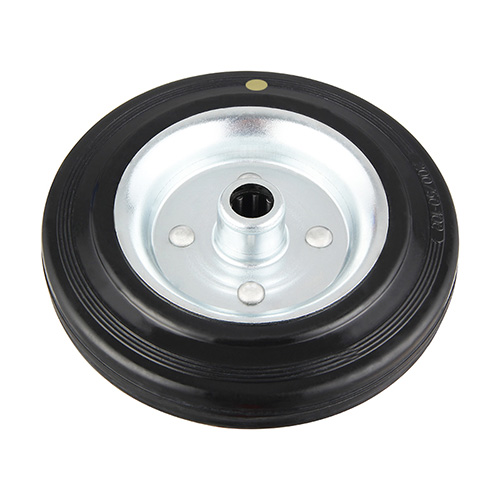

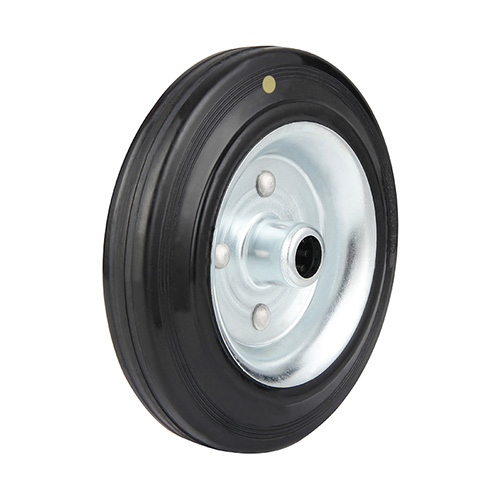

Black Shore A 85+/-3 Electric Conduction Rubber Tread, Pressed Steel Wheel Centre, Roller Bearing
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 30 | 40 | 12 | 50 | 80C30JCMRX4012 |
| 100 | 30 | 40 | 12 | 70 | 100C30JCMRX4012 |
| 125 | 37.5 | 50 | 15 | 100 | 125C37.5JCMRX5015 |
| 160 | 40 | 60 | 20 | 140 | 160C40JCMRX6020 |
| 200 | 50 | 60 | 20 | 205 | 200C50JCNRX6020 |
Tile Floor
Asphalt Floor
