Wheel diameter
100, 125, 160, 200mm
Load capacity
160, 250, 300, 350kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 68+5

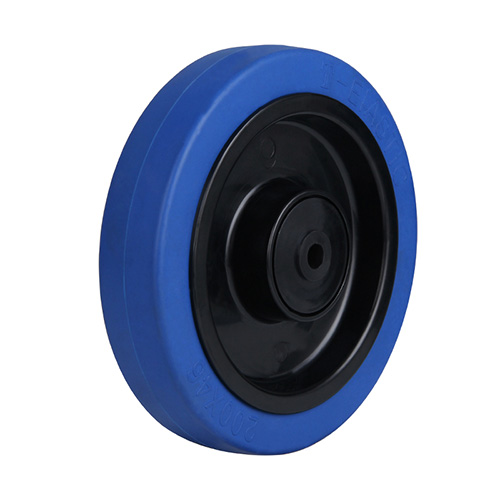

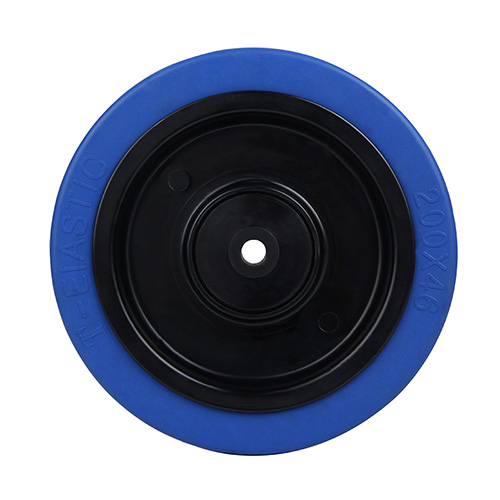

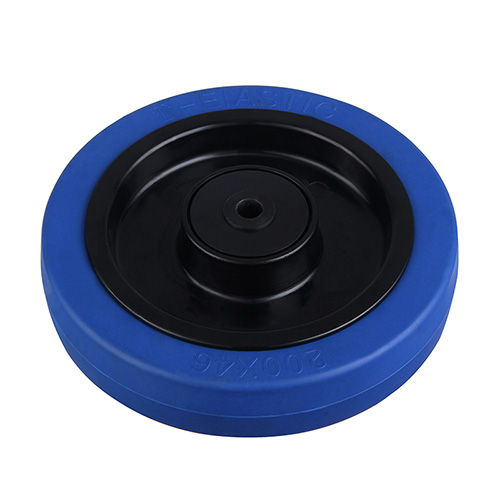

Black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, two ball bearings, blue samll plastic tread guards
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 100 | 34 | 42 | 8 | 160 | 100A34CETDA428 |
| 125 | 40 | 52 | 10 | 250 | 125A40CETDA5210 |
| 160 | 46 | 62 | 12 | 300 | 160A46CETDA6212 |
| 200 | 46 | 62 | 12 | 350 | 200A46CETDA6212 |
Black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, two ball bearings, blue samll plastic tread guards
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
