Wheel diameter
100, 125, 160, 200mm
Load capacity
100, 150, 200, 220kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

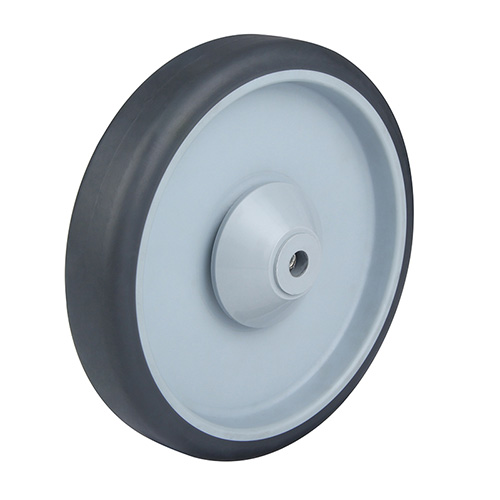

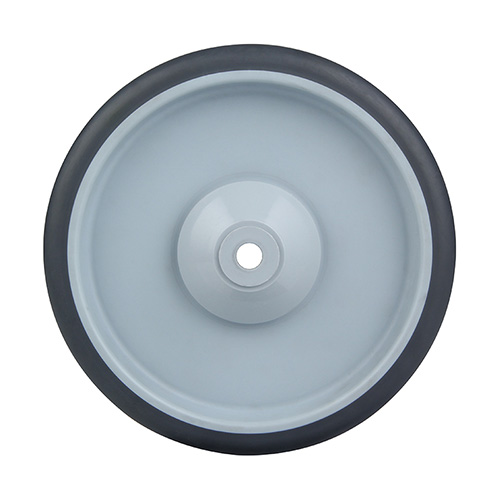

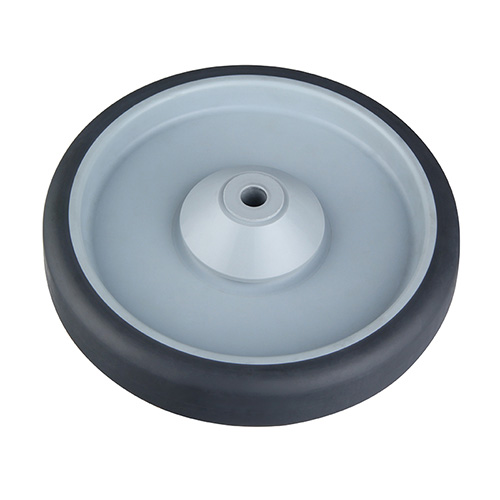

Grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, central ball bearing , dark grey samlll plastic thread guards
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 100 | 32 | 42 | 8 | 100 | 100D32DTEBA428 |
| 125 | 32 | 52 | 10 | 150 | 125D32DTEBA5210 |
| 160 | 40 | 62 | 12 | 200 | 160D40DTEBA6212 |
| 200 | 40 | 62 | 12 | 200 | 200D40DTEBA6212 |
Grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, central ball bearing , dark grey samlll plastic thread guards
Tile Floor
Resin Cement Floor
