Wheel diameter
80, 100, 125, 160, 200mm
Load capacity
100, 100, 150, 200, 220kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

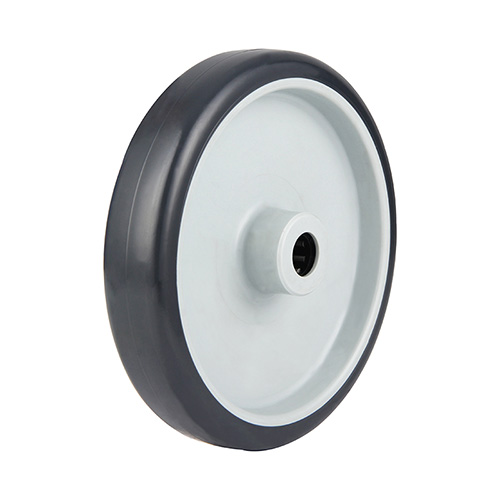

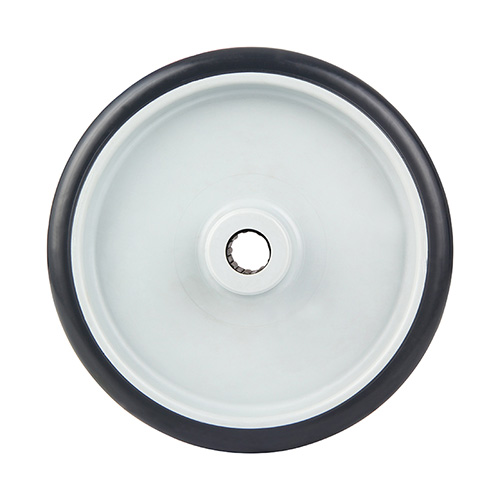

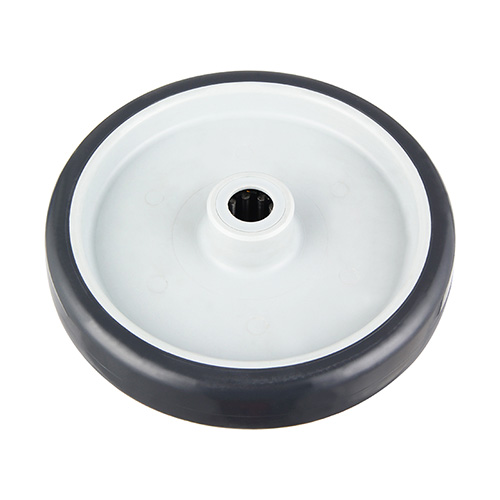

Grey polypropylene wheel centre, dark grey shore a 85
 Wheel Diameter |
 Width of Tread |
 Hub Length |
 Width of Axle Hole |
 Load capacity |
number |
|---|---|---|---|---|---|
| 80 | 28 | 44 | 12 | 100 | 80D38DTERX4412 |
| 100 | 32 | 40 | 12 | 100 | 100D32DTERX4012 |
| 125 | 32 | 50 | 15 | 150 | 125D32DTERX5015 |
| 160 | 40 | 60 | 20 | 200 | 160D40DTERX6020 |
| 200 | 40 | 60 | 20 | 200 | 200D40DTERX6020 |
Grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, roller bearing
Tile Floor
Resin Cement Floor
