Green Elastic Polyurethane Super Heavy Duty Castors

Green Elastic Polyurethane Super Heavy Duty Castors

Super Heavy Duty Castors , Green

Housing

tail_brake_castors

Wheel diameter

150, 160, 200mm

Load capacity

510, 600, 700kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

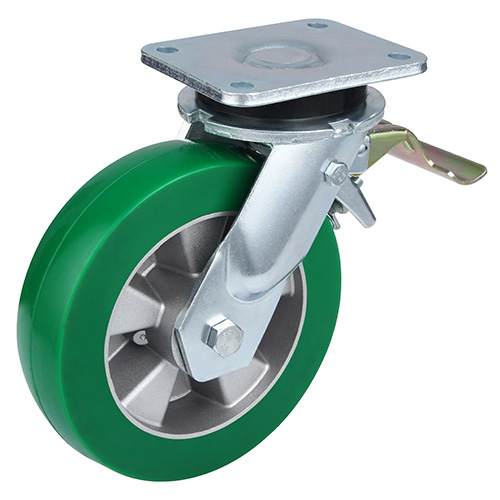

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane thread, two ball bearings.

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
150	40	135x110	105x80	13.5x11	57	148.5	205	510	23P1FB160H50JHUDX6020
160	40	135x110	105x80	13.5x11	57	148.5	245	600	23P1FB200H50JHUDX6020
200	50	135x110	105x80	13.5x11	55	148.5	305	700	23P1FB250H50JHUDX6020

Swivel head with tapered roller bearing and axial ball bearing,welded steel fork, silvery casting-aluminium wheel centre, shore A 85 green elastic polyurethane thread, two ball bearings.
