Housing
Swivel Castor
Wheel diameter
100, 125mm
Load capacity
100, 100kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

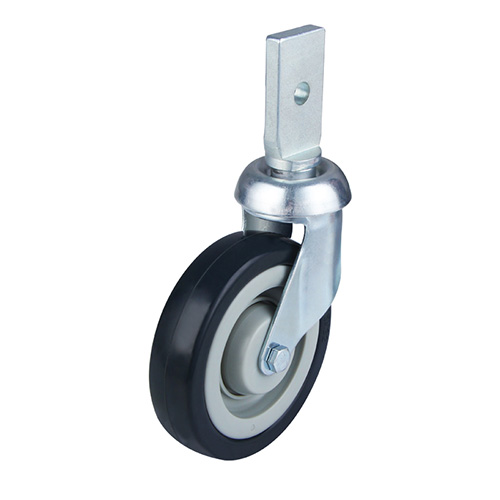

Pressed steel fork assembly, zinc-plated swivel head with double ball race, (MCB series)dark grey shore A 80 solid rubber tread, grey polypropylene wheel centre,central ball bearing, grey plastic tread guardsb
 Wheel Diameter |
 Width of Tread |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|
| 100 | 32 | 36 | 128 | 100 | 16GL1S100D32DMCBB378 |
| 125 | 32 | 36 | 155 | 100 | 16GL1S125D32DMCBB378 |
Pressed steel fork assembly, zinc-plated swivel head with double ball race, (MCB series)dark grey shore A 80 solid rubber tread, grey polypropylene wheel centre,central ball bearing, grey plastic tread guardsb
Tile Floor
Asphalt Floor
