Grey Thermoplastic Rubber Institutional Castors with Grey Plastic Thread Guards Grey Thermoplastic Rubber Institutional Castors with Grey Plastic Thread Guards

Grey Thermoplastic Rubber Institutional Castors with Grey Plastic Thread Guards

Housing

swivel_castors

Wheel diameter

75, 100, 125mm

Load capacity

75, 100, 100kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

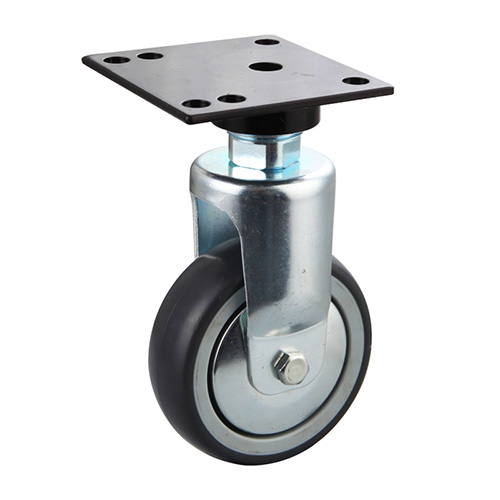

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore a 85

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Overall height

Load capacity
number
75 28 96x90 77/55x70 10.2 30.5 97-106 75 18P1S/S75D28DTPPD3612
100 32 96x90 77/55x70 10.2 40 118-127 100 18P1S/S100D32DTPPD3612
125 32 96x90 77/55x70 10.2 43 130-139 100 18P1S/S125D32DTPPD3612

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore A 85"thermoplastic rubber tread, plain bore, metal threard guards

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
