 Wheel Diameter |
 Width of Tread |
 Offset |
 Hole center |
 Swivel raidus |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 75 | 28 | 30.5 | ф10.5/ф13 | 98.5 | 100.5 | 75 | 18H1TB75D28DTPBB378 |
| 100 | 32 | 40 | ф10.5/ф13 | 112 | 134.5 | 100 | 18H1TB100D32DTPBB378 |
| 125 | 32 | 43 | ф10.5/ф13 | 118 | 159.5 | 100 | 18H1TB125D32DTPBB378 |

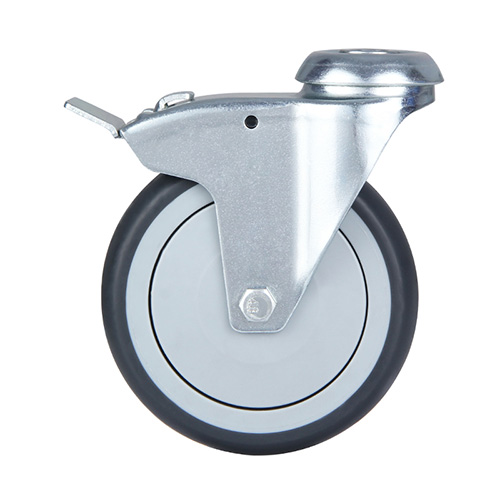

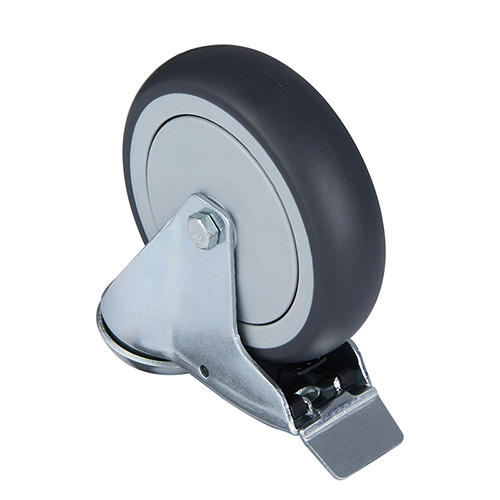

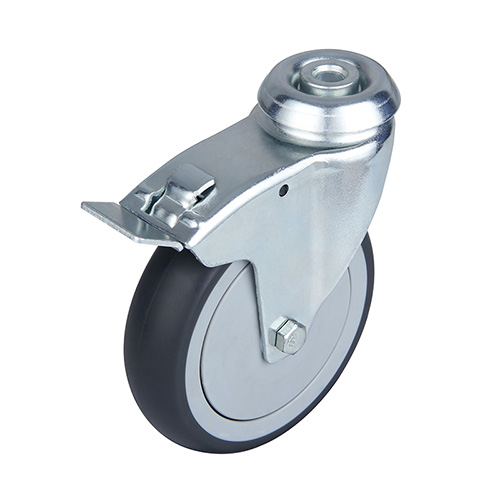

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, central ball bearing , grey plastic thread guards
