 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 75 | 28 | 77x67 | 55.7x46.5 | 16x8.5 | 103 | 75 | 18P1F75D28DTPBB378 |
| 75 | 28 | 105X80 | 80X60 | 16X8.5 | 103 | 75 | 18P1F/S75D28DTPBB378 |
| 100 | 32 | 77x67 | 55.7x46.5 | 16x8.5 | 137 | 100 | 18P1F100D32DTPBB378 |
| 100 | 32 | 102x87 | 80x60 | 16x8.5 | 137 | 100 | 18P1F/S100D32DTPBB378 |
| 125 | 32 | 77x67 | 55.7x46.5 | 16x8.5 | 162 | 100 | 18P1F125D32DTPBB378 |
| 125 | 32 | 105X80 | 80X60 | 16X8.5 | 162 | 100 | 18P1F/S125D32DTPBB378 |

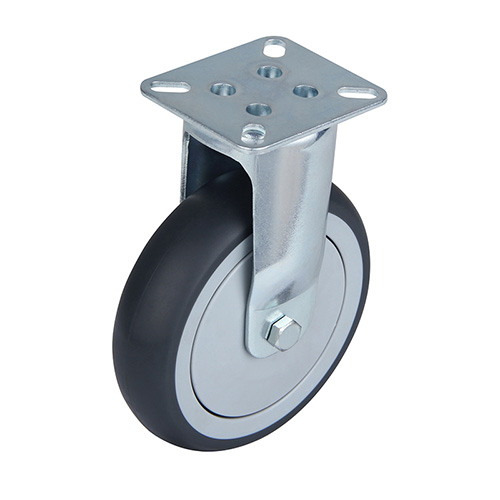

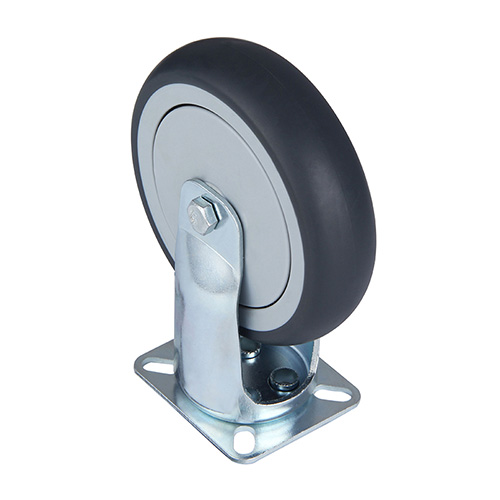

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore A 85"thermoplastic rubber tread, plain bore
