Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
75 | 28 | 96x90 | 77/55x70 | 10.2 | 97-106 | 75 | 18P1F/S75D28DTPPD3612 |
100 | 32 | 96x90 | 77/55x70 | 10.2 | 118-127 | 100 | 18P1F/S100D32DTPPD3612 |
125 | 32 | 96x90 | 77/55x70 | 10.2 | 130-139 | 100 | 18P1F/S125D32DTPPD3612 |

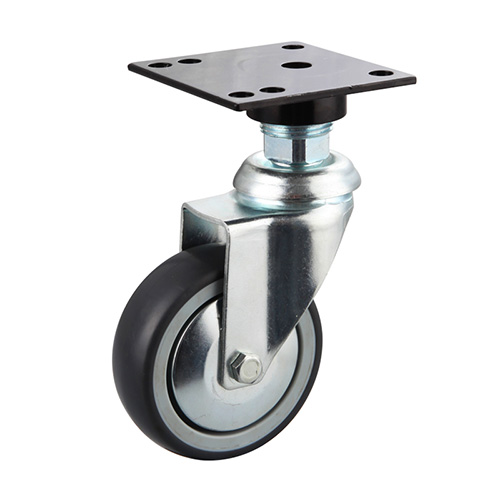

Pressed steel fork assembly, zinc-plated swivel head with double ball race and sealing, grey polypropylene wheel centre, dark grey shore A 85"thermoplastic rubber tread, plain bore, metal threard guards
