Housing
bolt_hole_castors
Wheel diameter
80, 100, 100mm
Load capacity
100, 120, 120kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

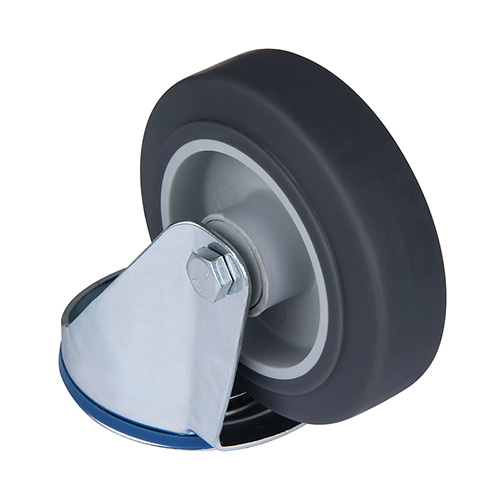

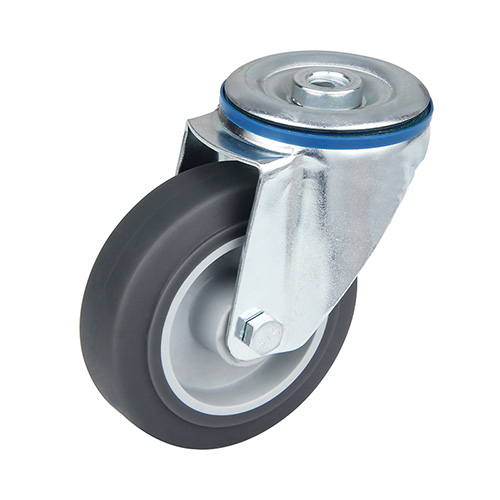

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85
 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 80 | 32 | 36 | ф10.5/ф13 | 99 | 100 | 07H1S80D32DTRRX4012 |
| 100 | 32 | 36 | ф10.5/ф13 | 124 | 120 | 07H1S100D32DTRRX4012 |
| 100 | 32 | 36 | ф10.5/ф13 | 127 | 120 | 07H1S/S100D32DTRRX4012 |
Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber thread, Roller bearing
Tile Floor
Resin Cement Floor
