Housing
bolt_hole_castors
Wheel diameter
100, 125mm
Load capacity
350kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

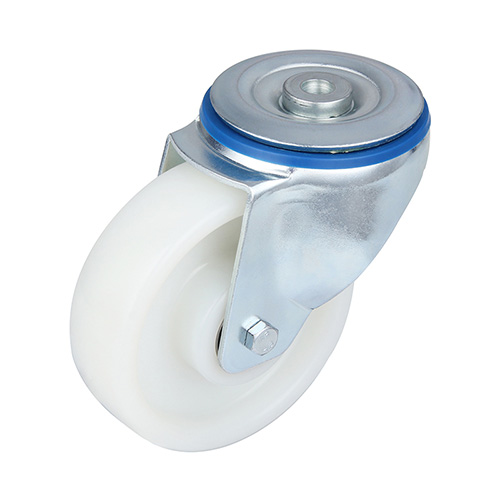

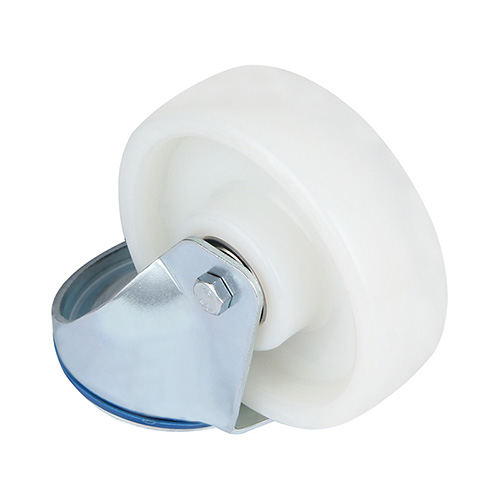

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, white injection polyamide, two ball bearings
 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 100 | 38 | 45 | ф16 | 128 | 350 | 06H1S100B38BPHDX5015 |
| 125 | 38 | 48 | ф16 | 155 | 350 | 06H1S125B38BPHDX5015 |
| 125 | 38 | 48 | ф16 | 155 | 350 | 06H1S/S125B38BPHDX5015 |
Tile Floor
Resin Cement Floor
