 Wheel Diameter |
 Width of Tread |
 Hole center |
 Offset |
 Swivel raidus |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 80 | 34 | ф10.5/ф13 | 36 | 129 | 99 | 150 | 07H1TB80B34BPARX4012 |
| 100 | 36 | ф10.5/ф13 | 40 | 132 | 124 | 180 | 07H1TB100B36BPARX4012 |
| 125 | 40 | ф10.5/ф13 | 40 | 134 | 154 | 250 | 07H1TB125B40BPARX5015 |
| 160 | 40 | ф16 | 60 | 203 | 185 | 300 | 07H1TB160B40BPARX6020 |
| 200 | 46 | ф16 | 60 | 203 | 230 | 350 | 07H1TB200B46BPARX6020 |

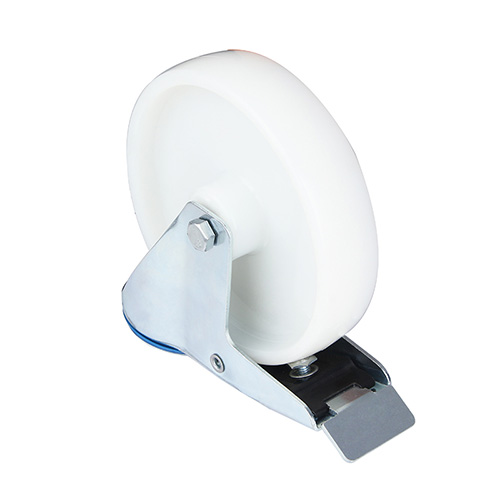

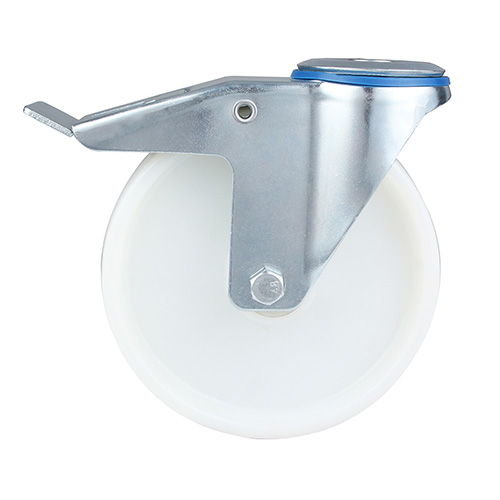

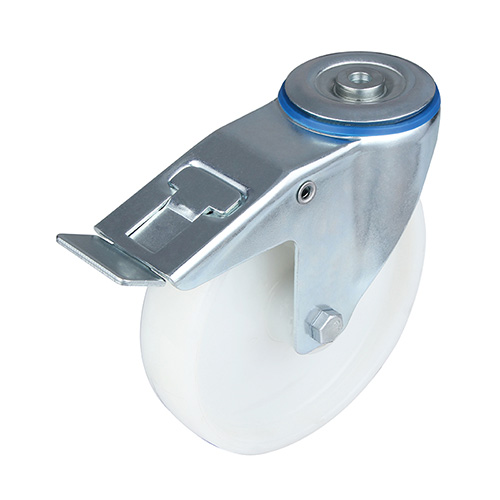

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, white injection polyamide, roller bearing
