 Wheel Diameter |
 Width of Tread |
 Offset |
 Hole center |
 Swivel raidus |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 80 | 34 | 36 | ф10.5/ф13 | 129 | 99 | 110 | 07H1TB80B34BPPRX4012 |
| 100 | 36 | 40 | ф10.5/ф13 | 132 | 124 | 130 | 07H1TB100B36BPPRX4012 |
| 100 | 36 | 40 | ф10.5/ф13 | 132 | 124 | 130 | 07H1TB/S100B36BPPRX4012 |
| 125 | 40 | 40 | ф10.5/ф13 | 134 | 154 | 160 | 07H1TB125B36BPPRX5015 |

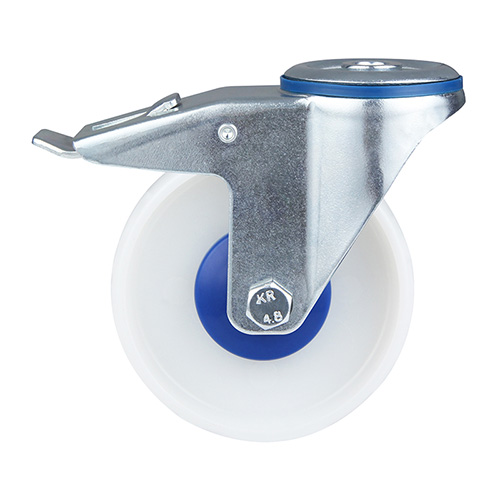

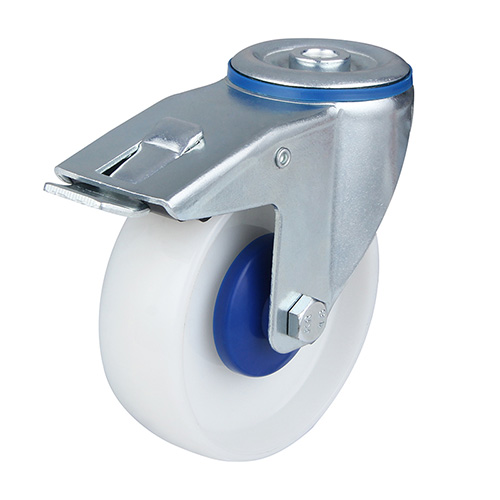

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, white injection polyopylene ,central ball bearing, blue samll plastic thread guards
