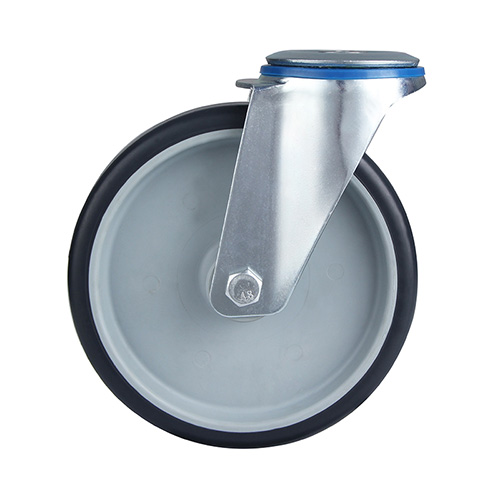

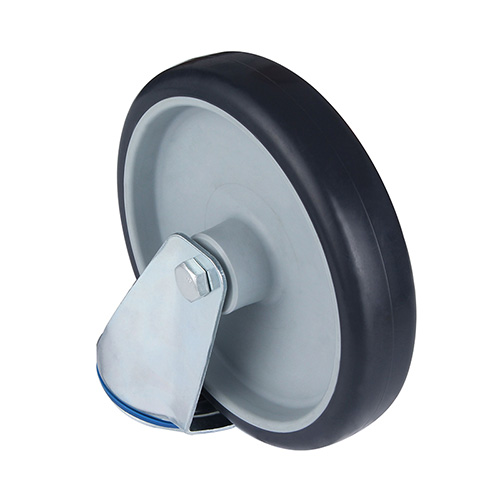

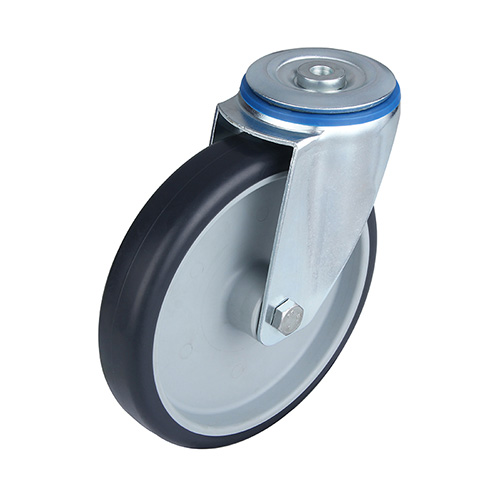

Grey Thermoplastic Rubber Swivel Castor with Bolt Hole

Grey Thermoplastic Rubber Swivel Castor with Bolt Hole

Industrial Castors , Grey

Housing

bolt_hole_castors

Wheel diameter

80, 100, 125, 160, 200mm

Load capacity

100, 100, 150, 200, 220kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Plate hole	Offset	Overall height	Load capacity	number
80	32	36	ф10.5/ф13	99	100	07H1TB38D38DTERX4012
100	32	36	ф10.5/ф13	124	100	07H1TB100D32DTERX4012
100	32	36	ф10.5/ф13	127	100	07H1TB/S100D32DTERX4012
125	32	36	ф10.5/ф13	154	150	07H1TB125D32DTERX5015
160	40	52	ф16	185	200	07H1TB160D40DTERX6020
200	50	54	ф16	230	220	07H1TB200D40DTERX6020

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, roller bearing
