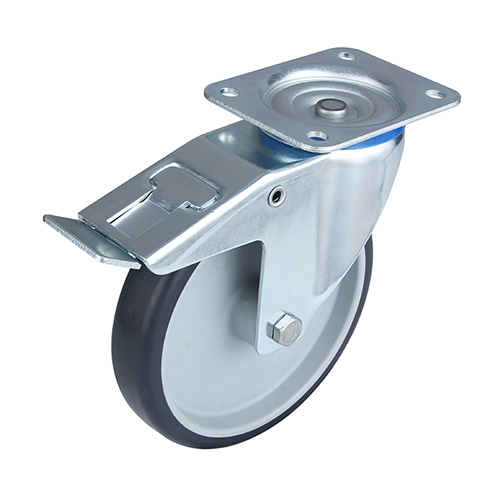

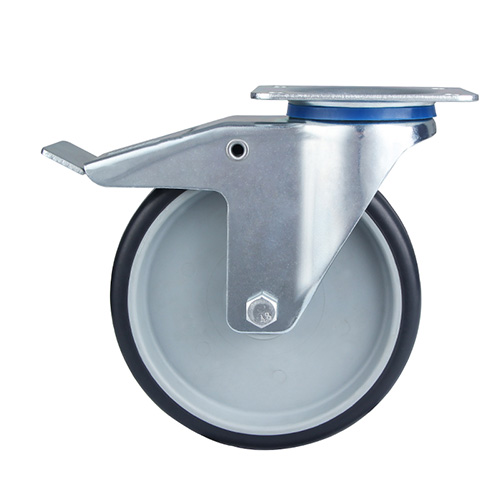

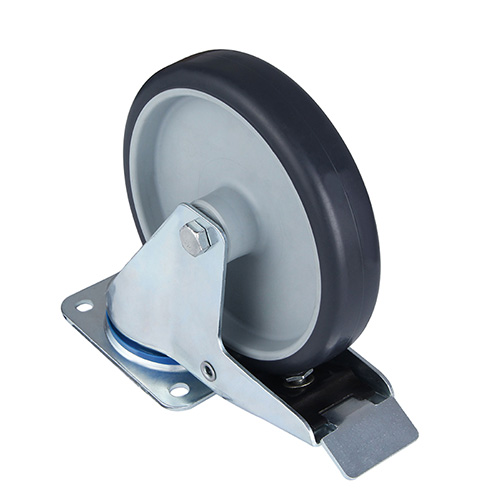

Grey Thermoplastic Rubber Swivel Castor with Total Lock

Grey Thermoplastic Rubber Swivel Castor with Total Lock

Industrial Castors , Grey

Housing

total_brake_castors

Wheel diameter

80, 100, 100, 125, 160, 200mm

Load capacity

100, 100, 100, 150, 200, 220kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
80	32	105x80	80x60	11X9	36	129	100	100	07P1TB38D38DTPRX4012
100	32	105x80	80x60	11X9	40	129	125	100	07P1TB100D32DTPRX4012
100	32	105x80	80x60	11X9	40	132	128	100	07P1TB/S100D32DTPRX4012
125	32	105x80	80x60	11X9	40	134	155	150	07P1TB125D32DTERX5015
160	40	135x110	105x80	13.5x11	60	203	190	200	07P1TB160D40DTERX6020
200	40	135x110	105x80	13.5x11	60	156	235	220	07P1TB200D40DTERX6020

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread, roller bearing
