Grey Thermoplastic Rubber Swivel Castor with Dark Grey Samll Plastic Thread Guards

Industrial Castors , Grey

Housing

swivel_castors

Wheel diameter

100, 100, 125, 160, 200mm

Load capacity

100, 100 150 200 220kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

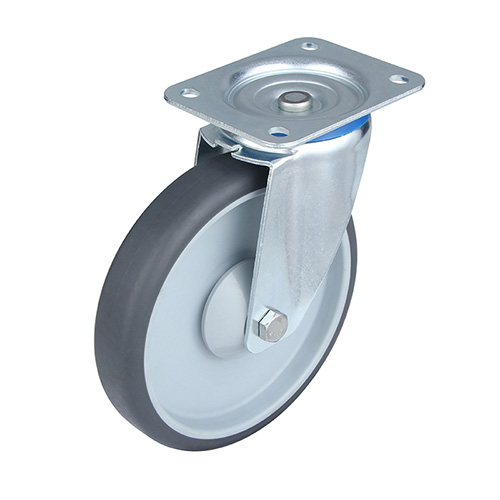

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
100	32	105x80	80x60	11X9	36	125	100	07P1S100D32DTEBA428
100	32	105x80	80x60	11X9	36	128	100	07P1S/S100D32DTEBA428
125	32	105x80	80x60	11X9	36	155	150	07P1S125D32DTEBA5210
160	40	135x110	105x80	13.5x11	52	190	200	07P1S160D40DTEBA6212
200	40	135x110	105x80	13.5x11	54	235	220	07P1S200D40DTEBA6212

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber thread, central ball bearing, dark grey samll plastic thread guards
