Wheel Diameter |
Width of Tread |
Offset |
Hole center |
Swivel raidus |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 32 | 36 | ф10.5/ф13 | 129 | 99 | 100 | 07H1TB80D32DTRBA4208 |
100 | 32 | 40 | ф10.5/ф13 | 132 | 124 | 120 | 07H1TB100D32DTRBA4208 |
100 | 32 | 40 | ф10.5/ф13 | 132 | 127 | 120 | 07H1TB/S100D32DTRBA4208 |

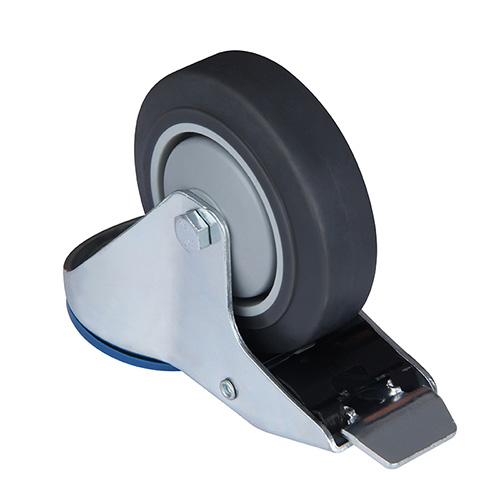

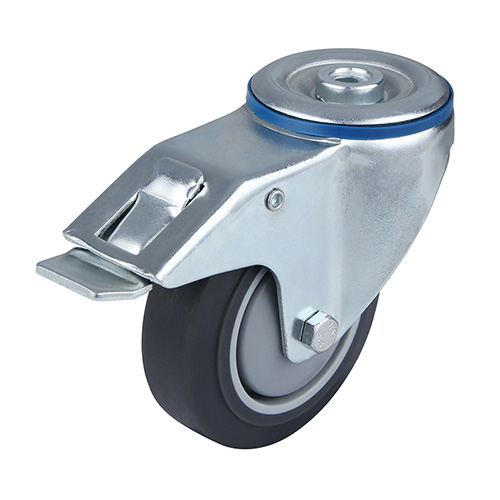

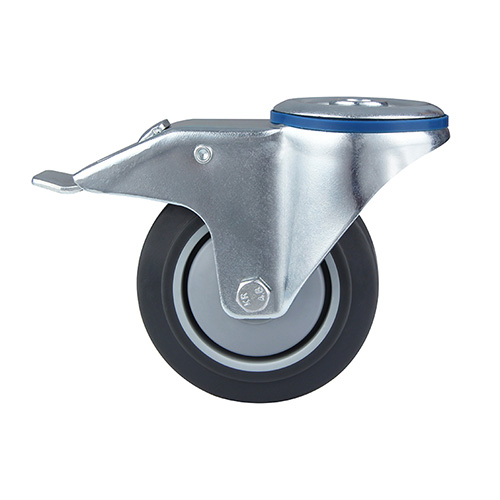

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread,centre ball bearing, grey samll plastic thread guards
