 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 80 | 32 | 105x80 | 80x60 | 11X9 | 36 | 100 | 100 | 07P1S80D32DTRBA428 |
| 100 | 32 | 105x80 | 80x60 | 11X9 | 36 | 125 | 120 | 07P1S100D32DTRBA428 |
| 100 | 32 | 105x80 | 80x60 | 11X9 | 36 | 128 | 120 | 07P1S/S100D32DTRBA428 |

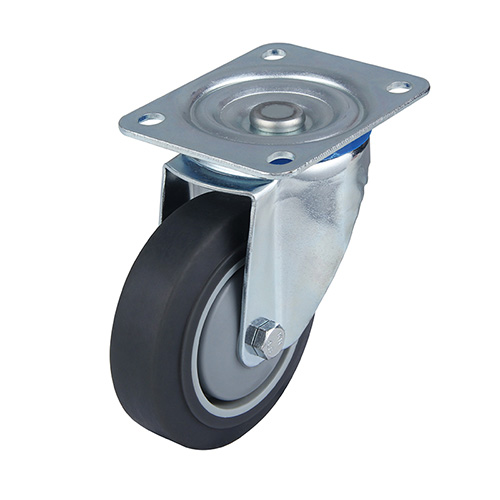

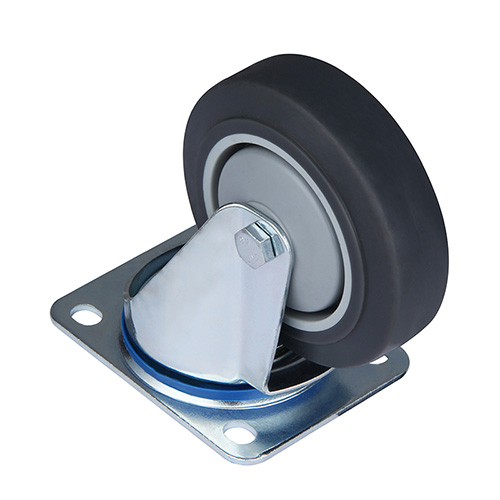

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polypropylene wheel centre, dark grey shore a 85"thermoplastic rubber tread,centre ball bearing, grey samll plastic thread guards
