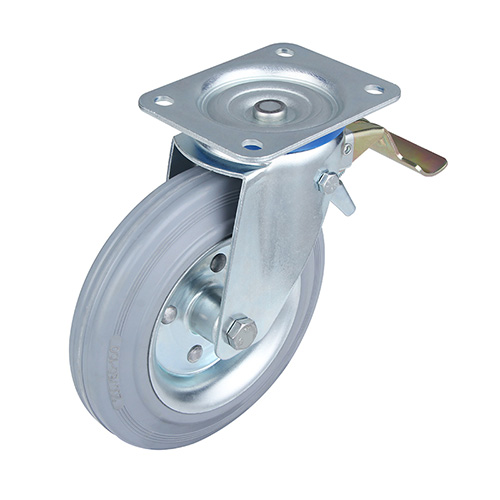

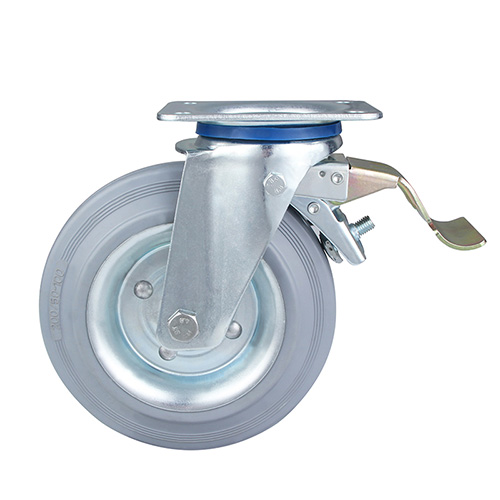

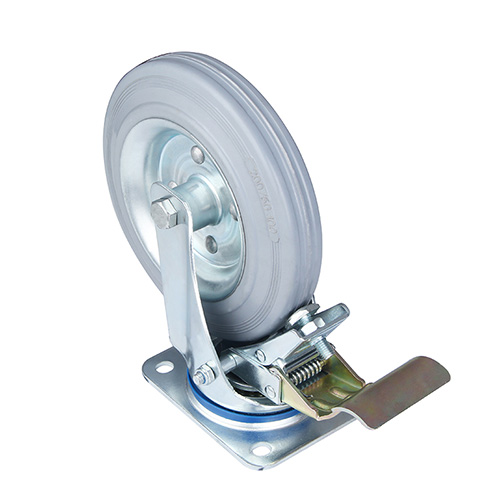

Grey Solid Rubber Swivel Castor with Front Lock

Grey Solid Rubber Swivel Castor with Front Lock

Industrial Castors , Grey

Housing

tail_brake_castors

Wheel diameter

80, 100, 100, 125, 160, 200mm

Load capacity

50, 70, 70, 100, 140, 205kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85+/-3

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey 85+/-3 solid rubber tread, pressed steel wheel centre, roller bearing

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
160	40	135x110	105x80	13.5x11	52	154	190	140	07P1DB160D40JGMRX6020
200	50	135x110	105x80	13.5x11	54	154	235	205	07P1DB200D50JGMRX6020

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey 85+/-3 solid rubber tread, pressed steel wheel centre, roller bearing
