 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 80 | 30 | 36 | ф10.5/ф13 | 99 | 50 | 07H1S80D30CGPRX4012 |
| 100 | 30 | 36 | ф10.5/ф13 | 124 | 70 | 07H1S100D30CGPRX4012 |
| 100 | 30 | 36 | ф10.5/ф13 | 127 | 70 | 07HS/S100D30CGPRX4012 |
| 125 | 37.5 | 36 | ф10.5/ф13 | 154 | 100 | 07H1S125D37.5CGPRX5015 |
| 160 | 40 | 52 | ф16 | 185 | 140 | 07H1S160D40CGPRX6020 |
| 200 | 50 | 54 | ф16 | 230 | 205 | 07H1S200D50CGPRX6020 |

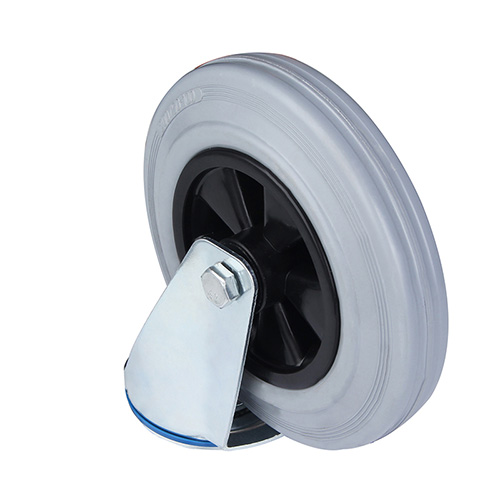

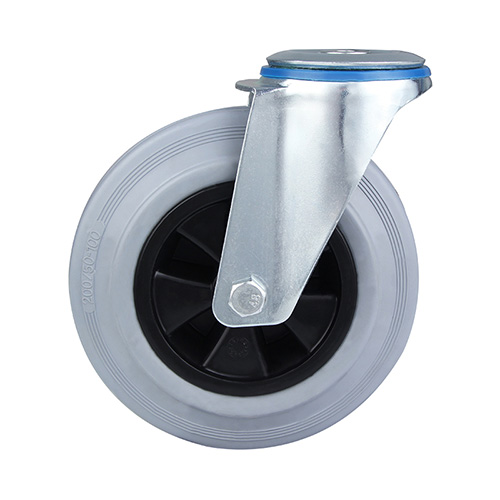

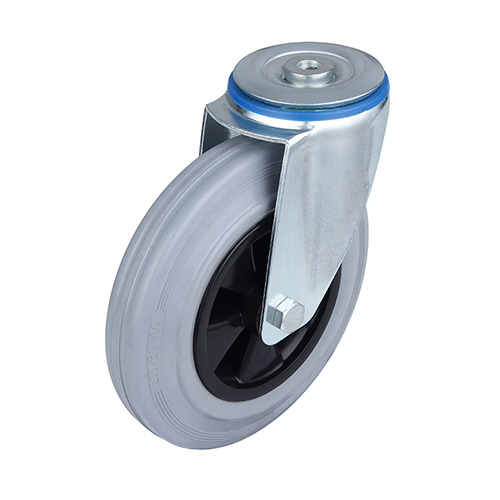

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, black shore a 85+/-3 solid rubber tread, black polypropylene wheel centre, roller bearing
