 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 100 | 36 | 36 | ф10.5/ф13 | 124 | 135 | 07H1S100D36DRERX4012 |
| 100 | 36 | 36 | ф10.5/ф13 | 127 | 127 | 07H1S/S100D36DRERX4012 |
| 125 | 36 | 36 | ф10.5/ф13 | 154 | 160 | 07H1S125D36DRERX5015 |

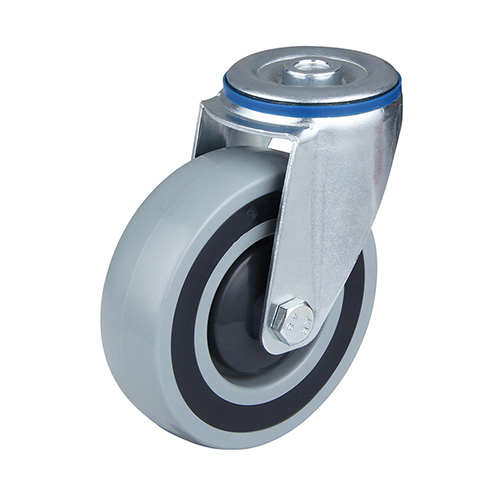

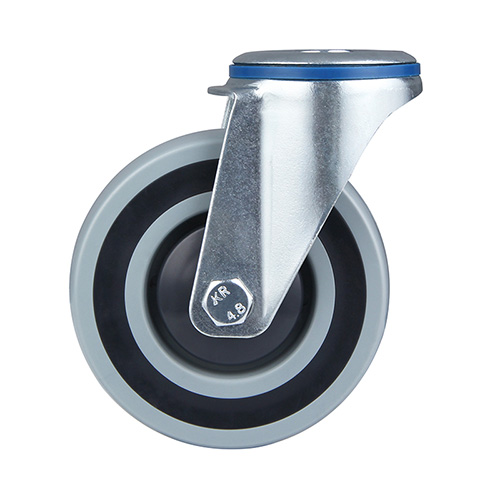

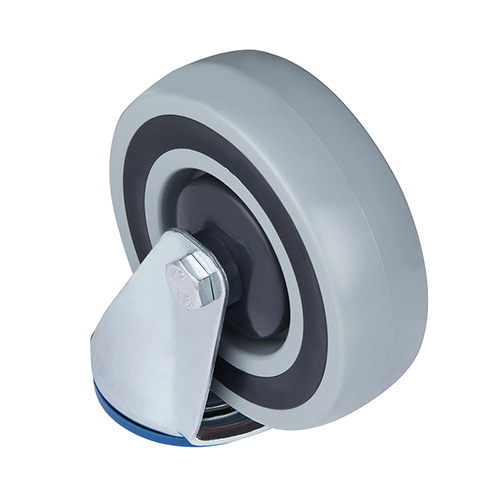

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, grey polypropylene thread, grey polypropylene with dark grey shore a 85"thermoplastic rubber wheel centre, roller bearing,samll metal thread guards
