 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 100 | 36 | 36 | ф10.5/ф13 | 124 | 135 | 07H1S100D36DREBA4208 |
| 100 | 36 | 36 | ф10.5/ф13 | 127 | 127 | 07H1S/S100D36DREBA4208 |
| 125 | 36 | 36 | ф10.5/ф13 | 154 | 160 | 07H1S125D36DREBA5210 |

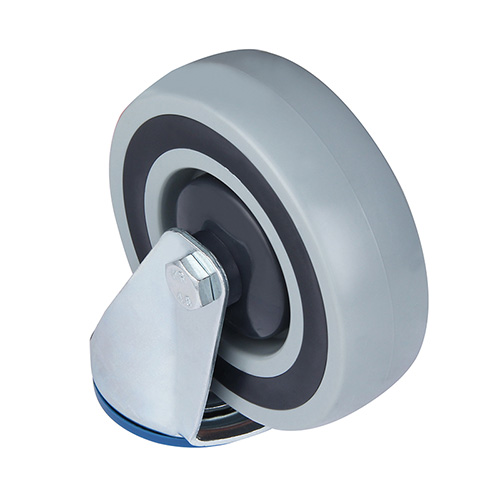

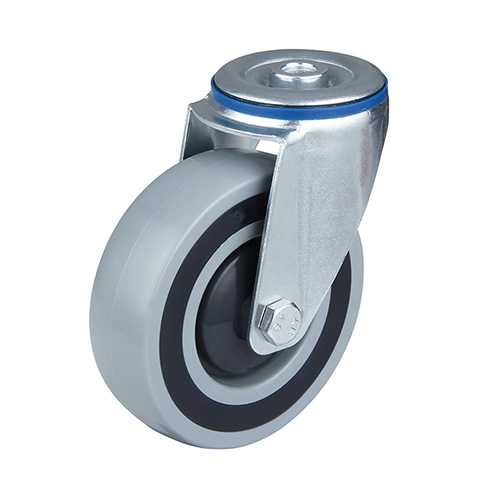

Pressed steel swivel fork assembly, zinc-plated Swivel head with double ball raceGrey Polypropylene thread , Grey Polypropylene with dark Grey Shore A 85" Thermoplastic Rubber wheel centre, Central ball bearing, Dark Grey samll Plastic thread guards
