Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
100 | 36 | 36 | ф10.5/ф13 | 124 | 160 | 07H1S100D36DRARA4012 |
100 | 36 | 36 | ф10.5/ф13 | 127 | 160 | 07H1S/S100D36DRARA4012 |
125 | 36 | 36 | ф10.5/ф13 | 154 | 200 | 07H1S125D36DRARA5015 |

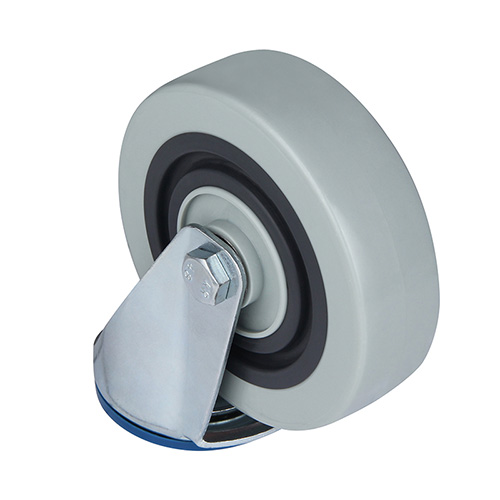

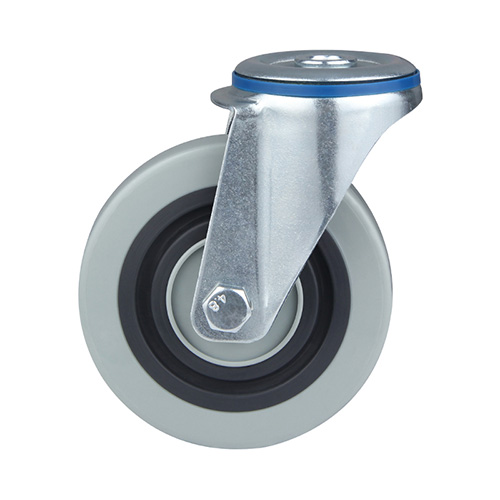

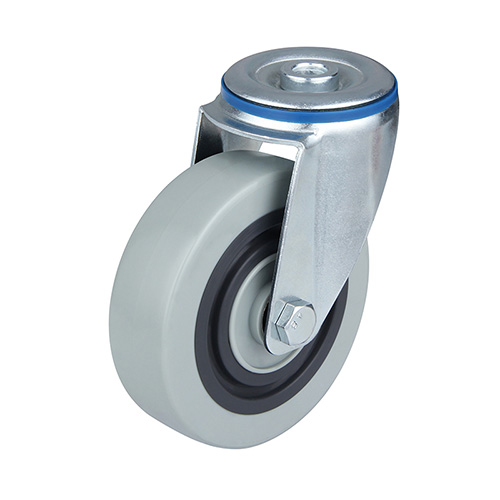

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head grey polyamide wheel centre, grey polyamide and dark grey shore a 80" elastic rubber wheel centre, roller bearing, grey samll plastic thread guards
